Krithick Ravi Ingolstadt, DE

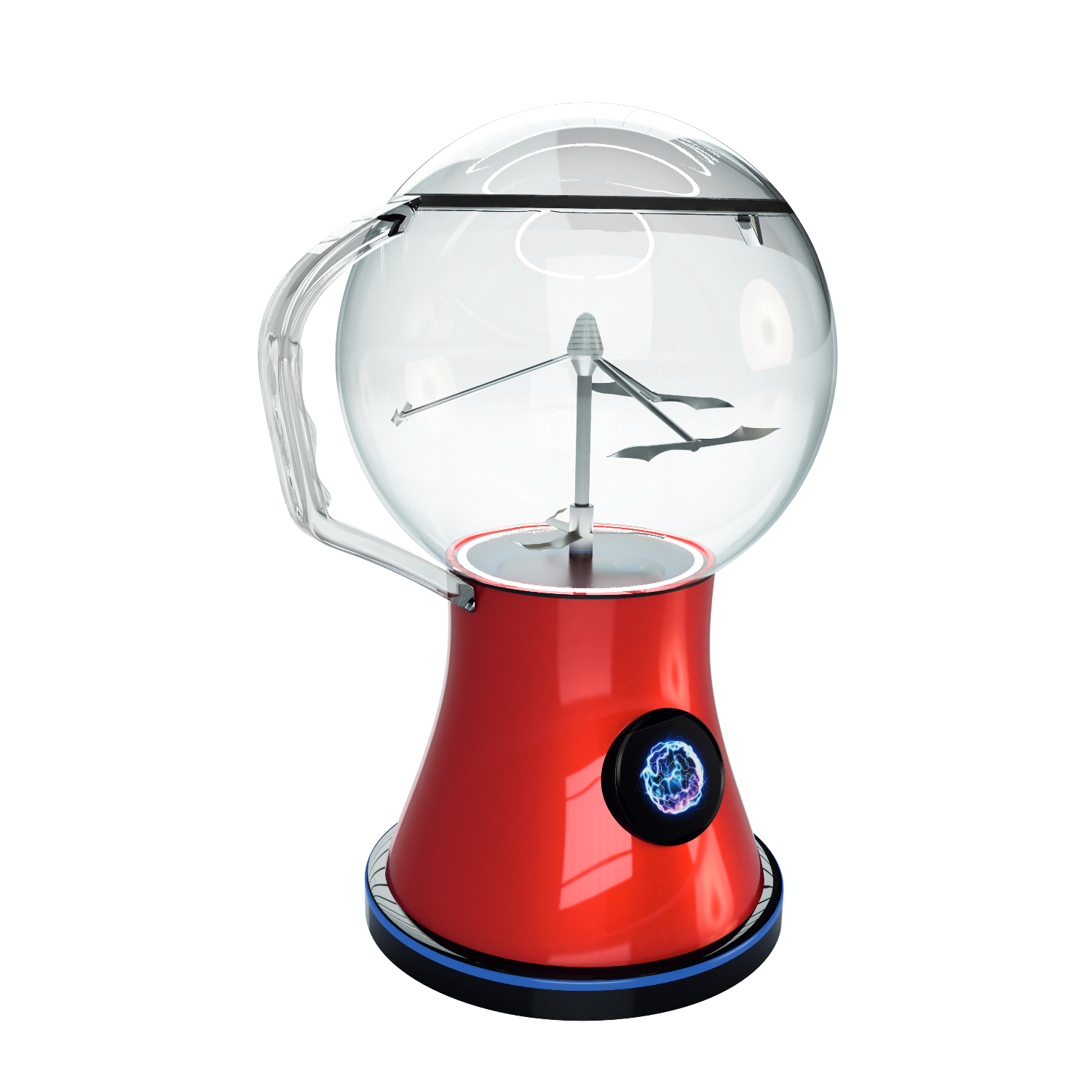

Vortège juicer render
01
Industrial
Design
Form, CMF and the object itself — juicers, speakers, furniture, toys.
QPW500 endoskeleton isometric render
02
Mechanical
Engineering
Test rigs, airframes, drivetrains — geometry that has to survive load.
Desk-E
03
Digital
Tools
IP-E, Desk-E — software I build to make the hardware work go faster.
WHO AM I?
Who you're talking to

I design the object and then make sure it can actually be built.

I'm Krithick — a product designer and mechanical engineer in Ingolstadt, finishing an MSc at Technische Hochschule Ingolstadt. My background runs both ways: a mechanical engineering degree and BAJA competition fabrication on one side, industry design projects with Rohde & Schwarz and tesa on the other. That combination is the whole point. I can take a concept from a sketch through CMF and CAD to a structure that tolerates load, tooling and a service technician.

Three doors above, because the work genuinely splits three ways. Pick whichever matches the role you're hiring for.

Based in
Donauwörth , Bayern
Looking for
Product design & development roles
Tools
Fusion 360 · SolidWorks · KeyShot
Worked with
Concept and form
Sketch to resolved product: proportion, CMF, brand fit, and the argument for why the shape is that shape.
CAD and structure
Parametric assemblies built for fabrication — sheet metal, frames, mounts, tolerance and teardown.
Proving it
Prints, rigs and rendered surface checks — the point where a nice drawing either holds up or doesn't.
Krithick Ravi · Ingolstadt, DE
Tell me what you're building and I'll tell you how I'd approach it.
Krithick Ravi
Industrial Design Mechanical Engineering Digital Tools
Profile 01 — Industrial Design

Objects that earn their place on the counter.

Product development and concept design, from fluid-dynamics-led kitchen appliances to consumer audio. MSc at Technische Hochschule Ingolstadt.

2025 · THI · Live 3D
Vortège
A counter-rotating, three-axis juicer built around chaotic mixing.
tesa Sporty Block dispenser, stone-look CMF
2025 · tesa × THI
Sporty Block
A one-handed desk dispenser: a wedge that stays put, a blade you can find, and a silhouette you can name across a room.

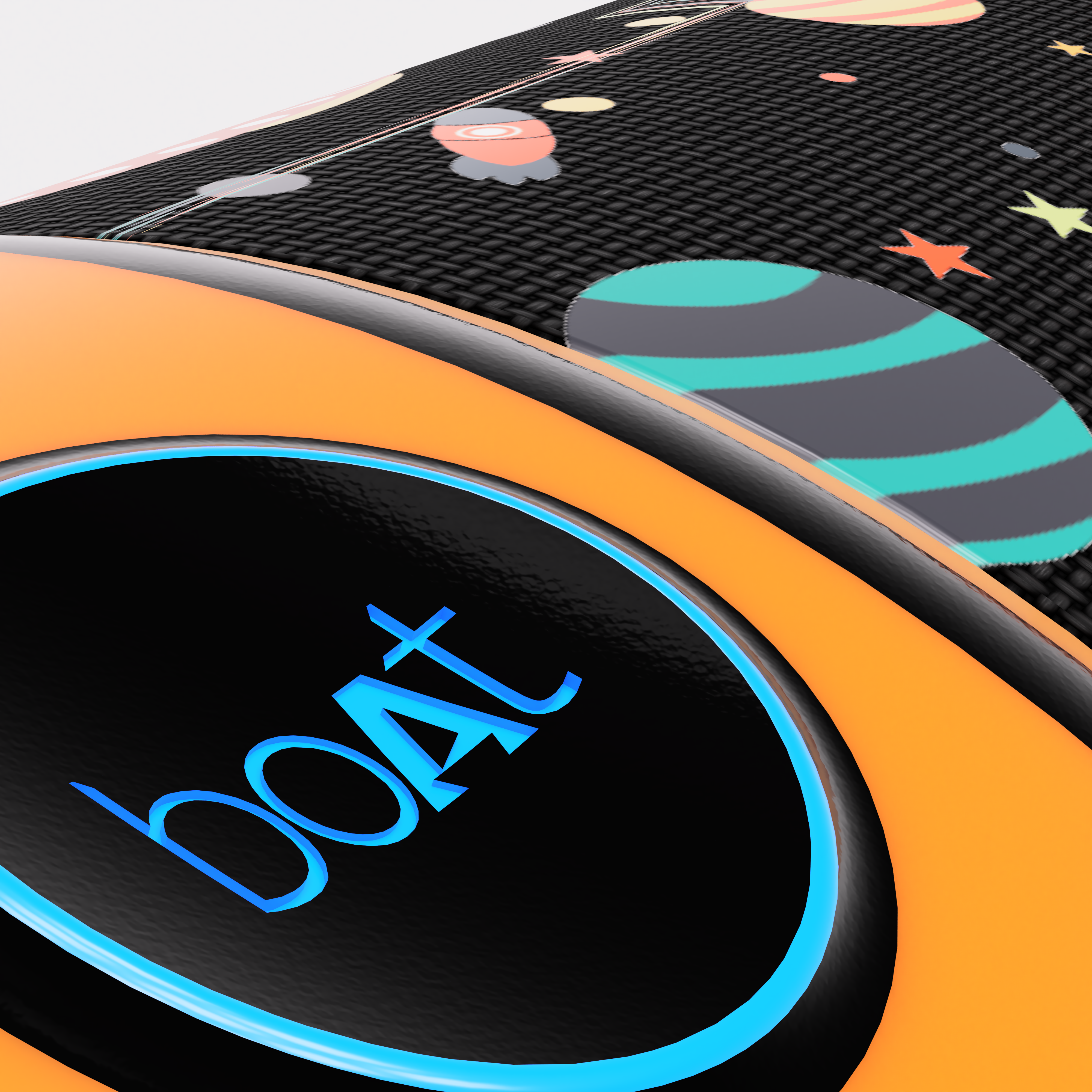

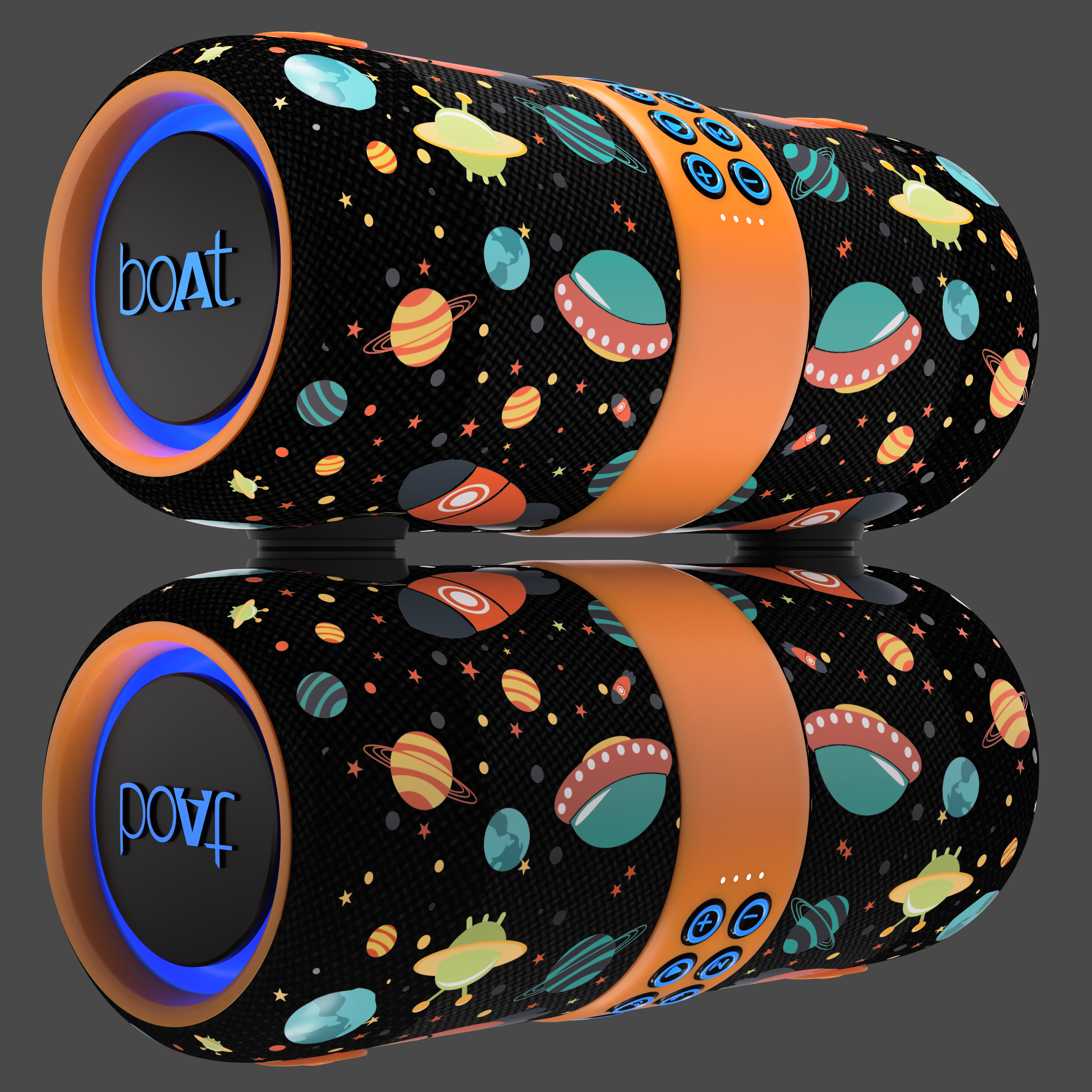

boAt BT Speaker
Concept · 2022

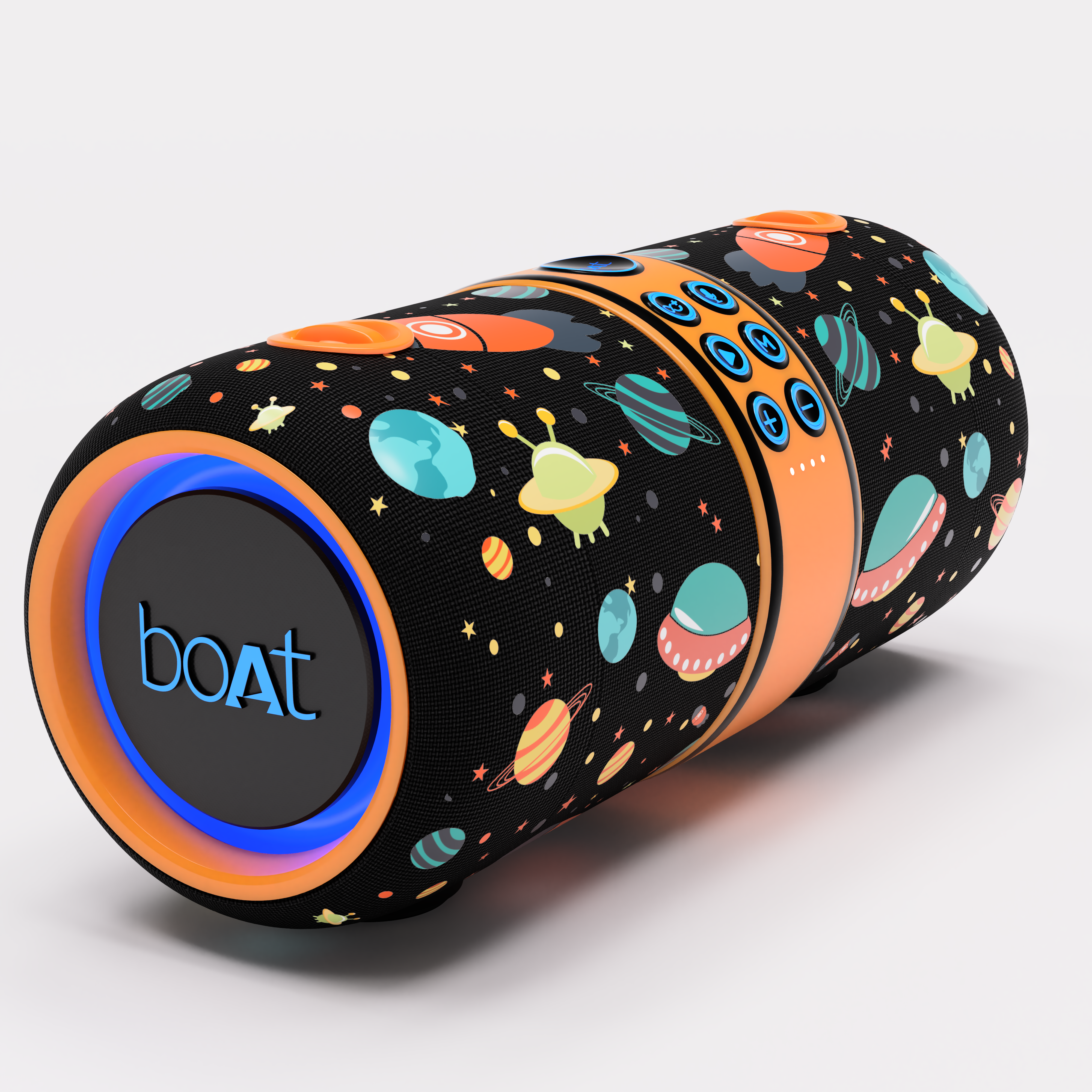

Stone 1200F
Redesign for kids · Yanko Design × boAt challenge

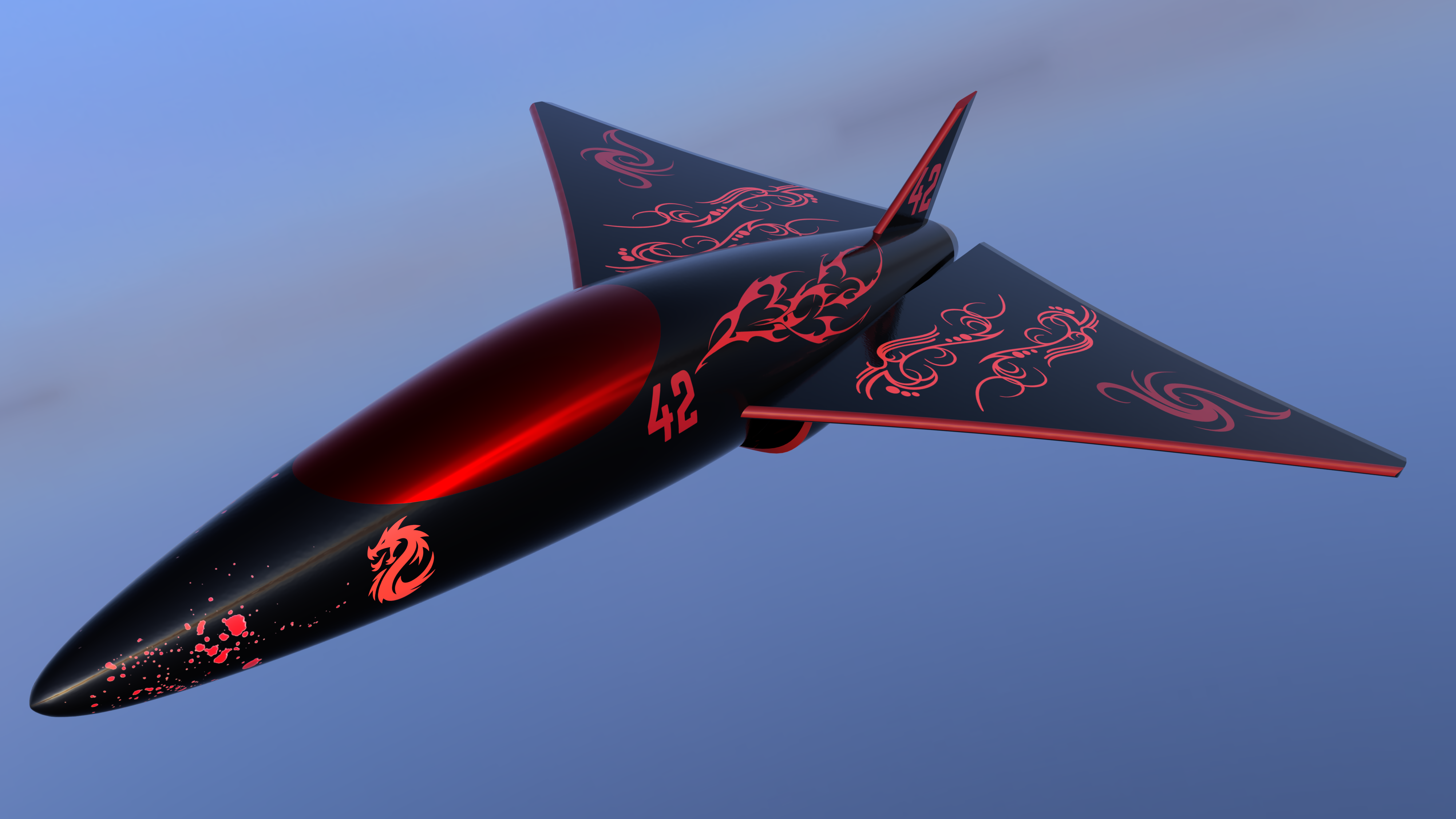

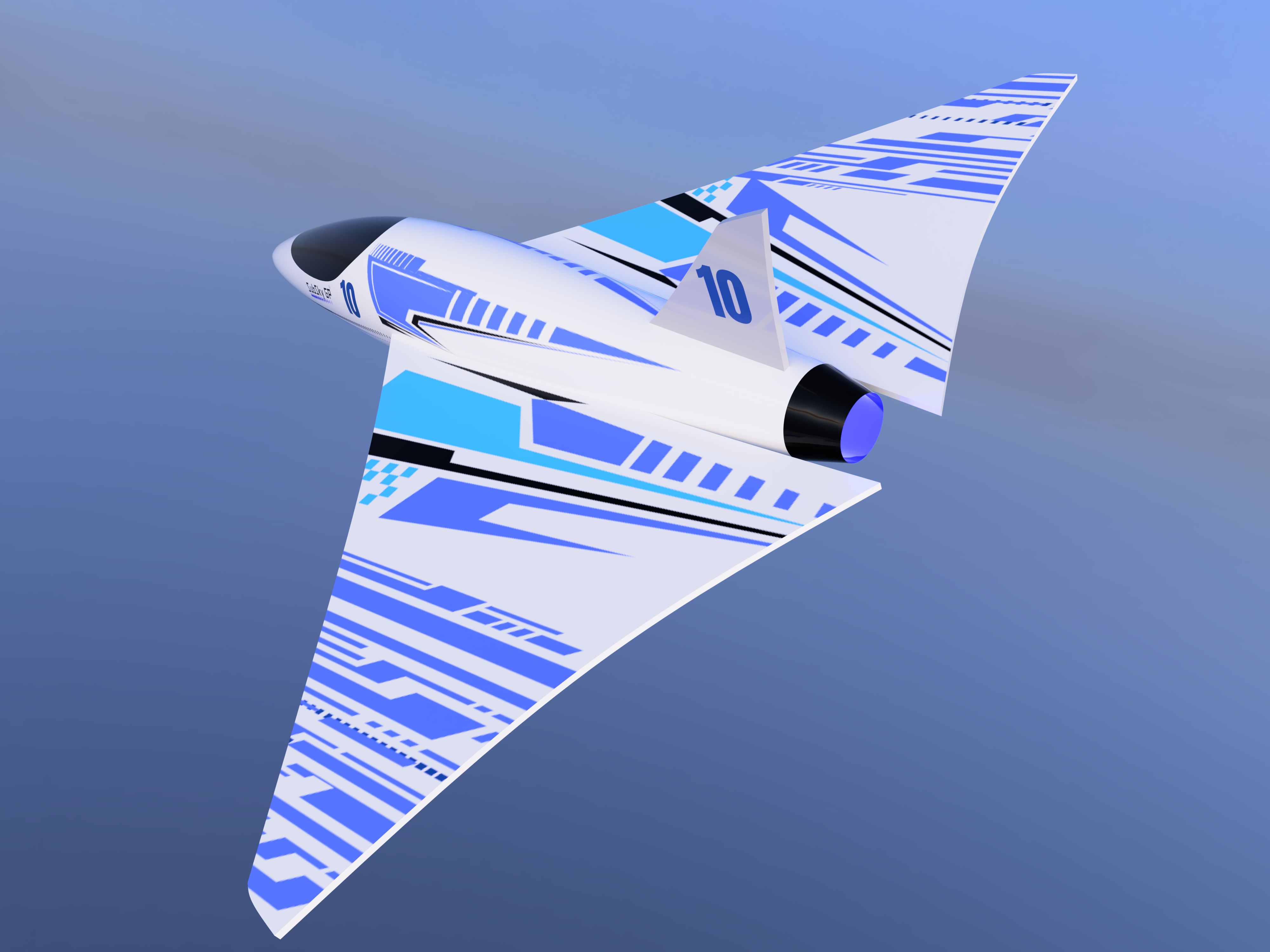

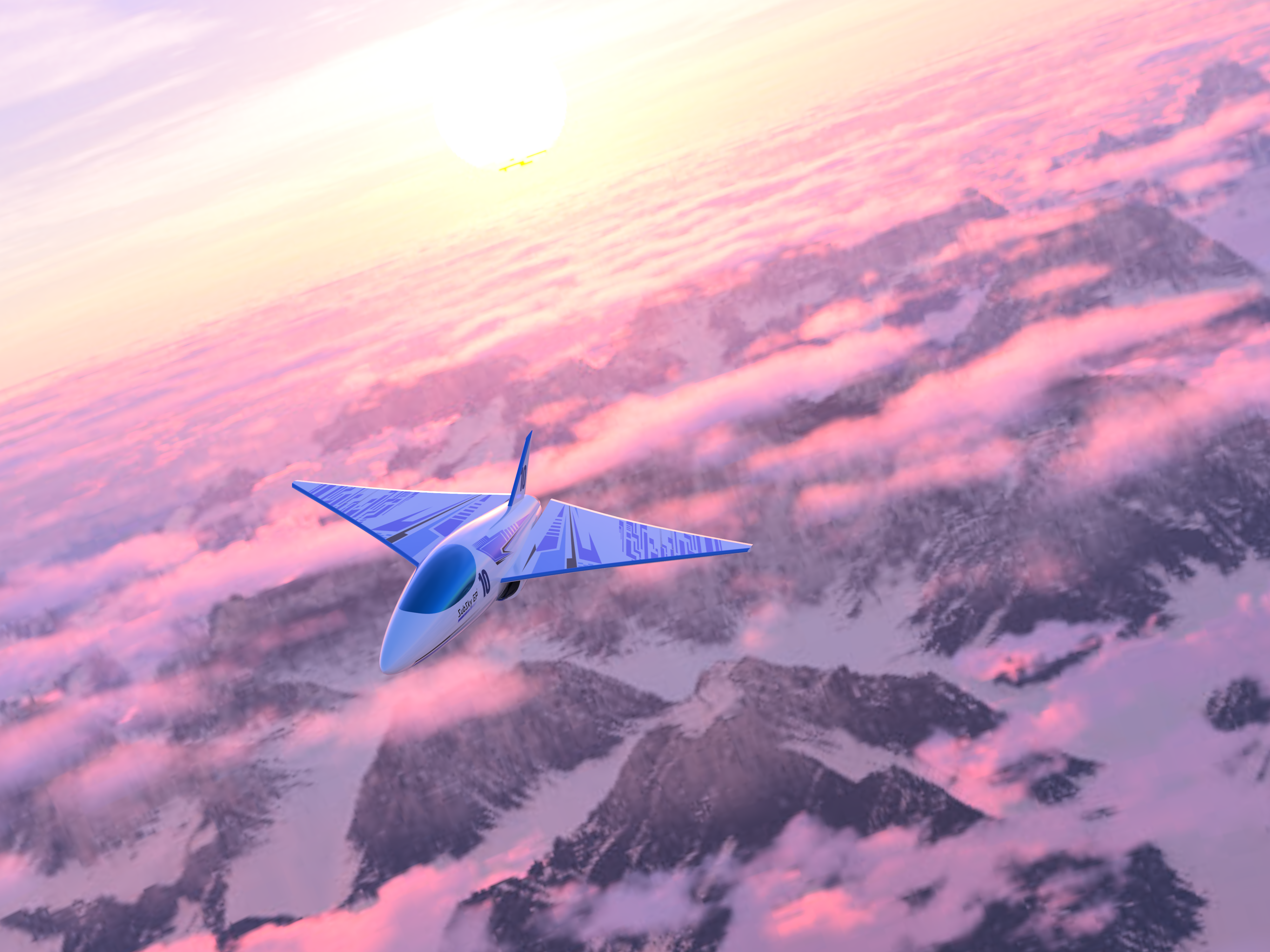

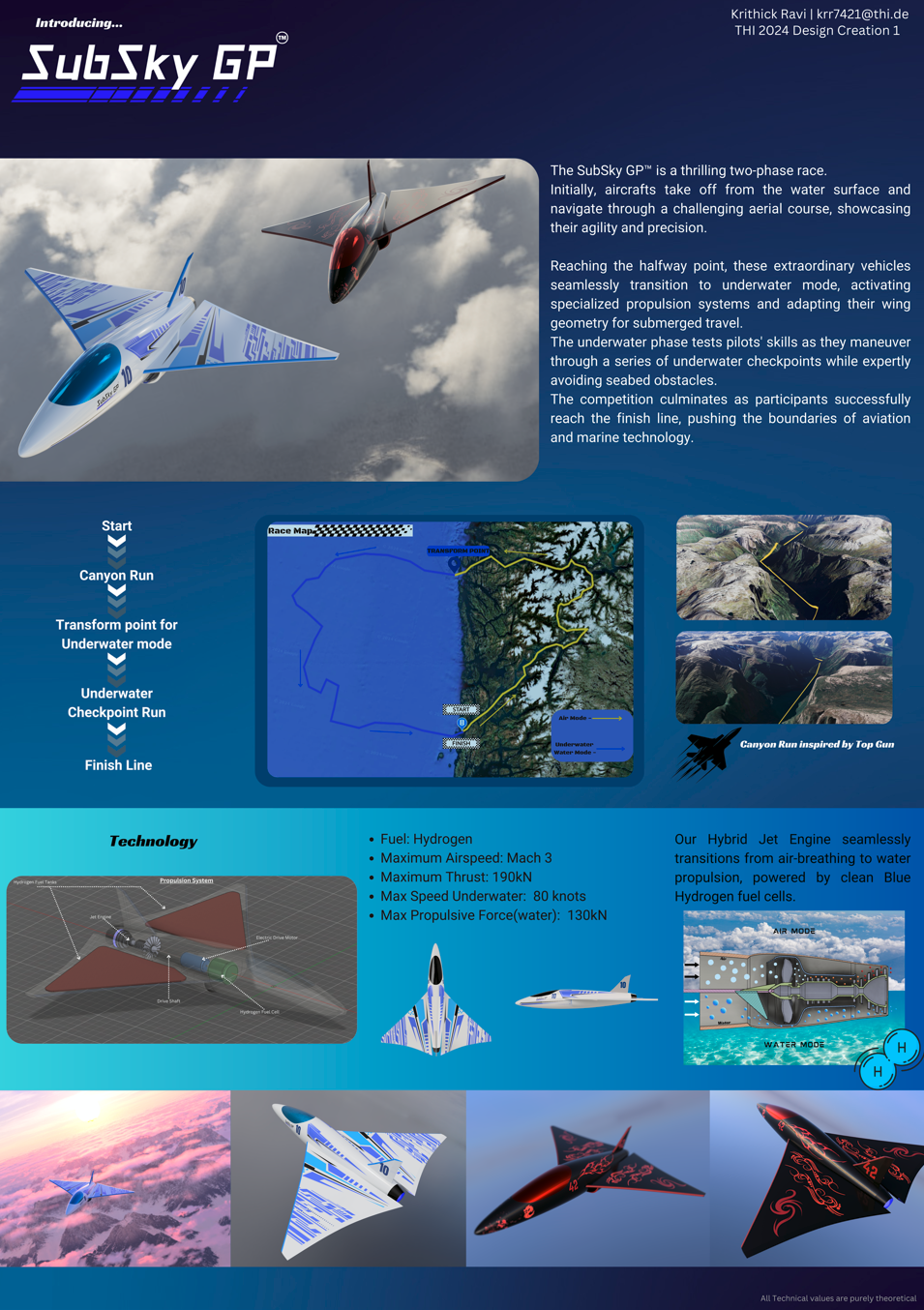

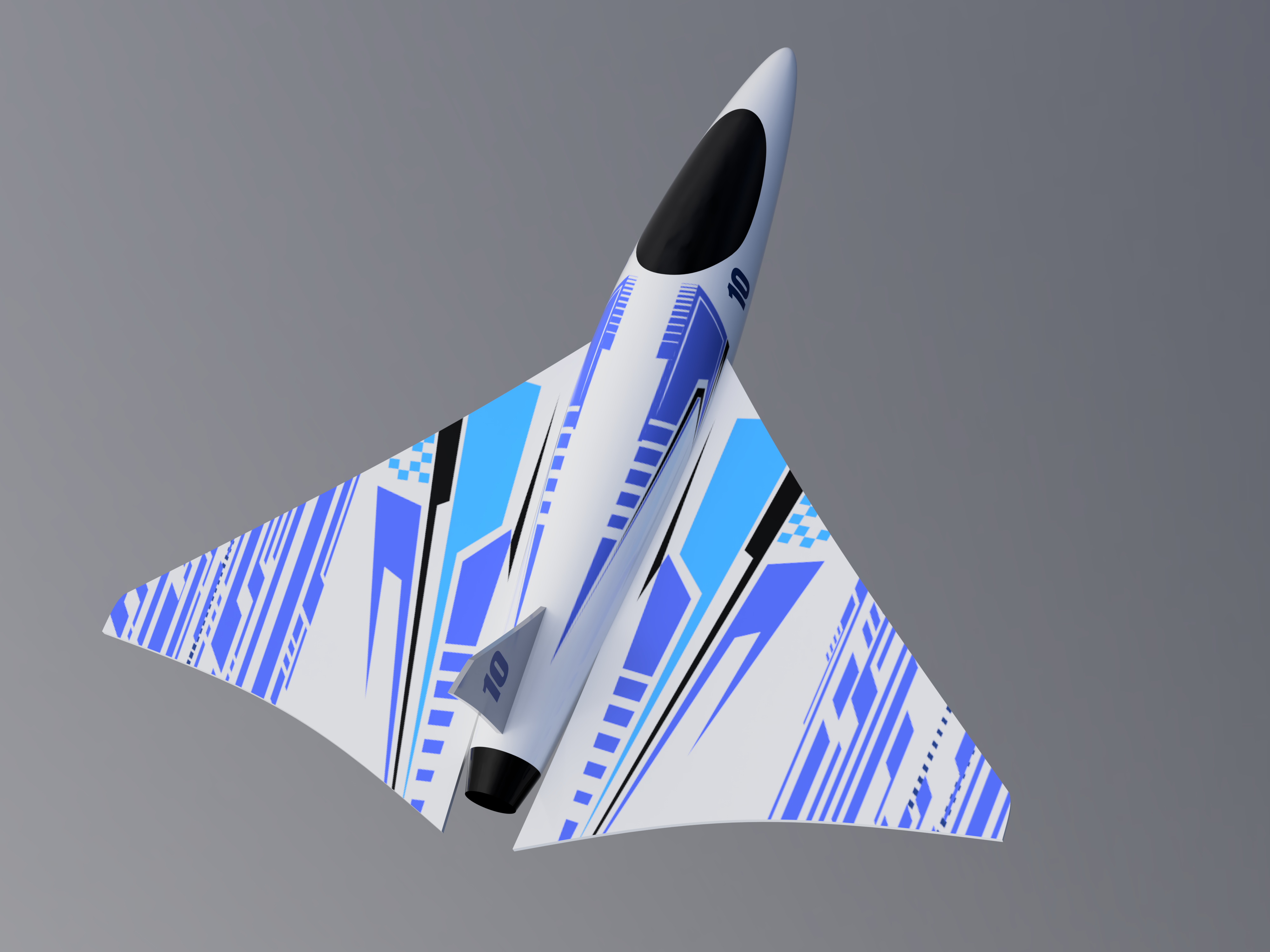

SubSky GP
Two-phase race concept · THI 2024

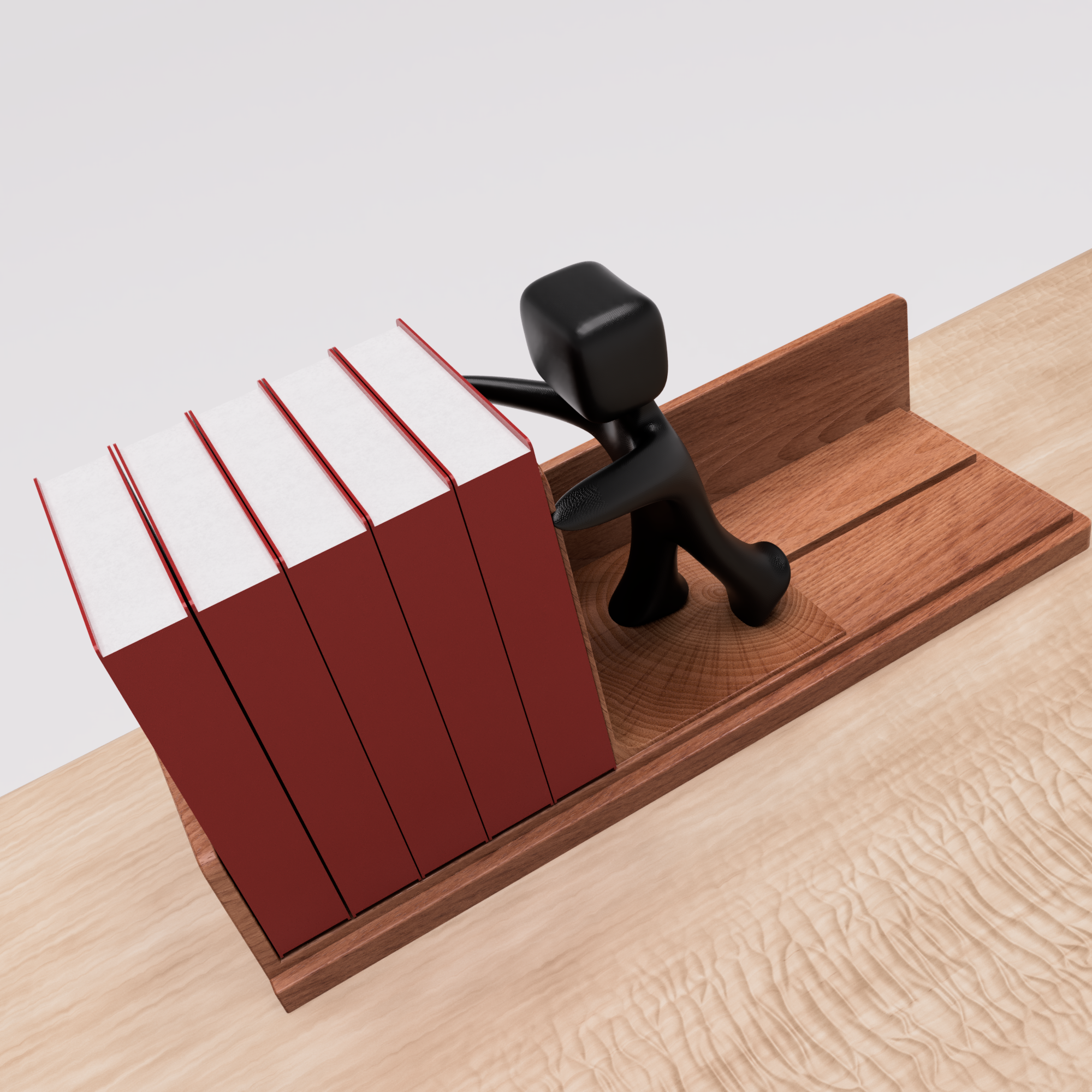

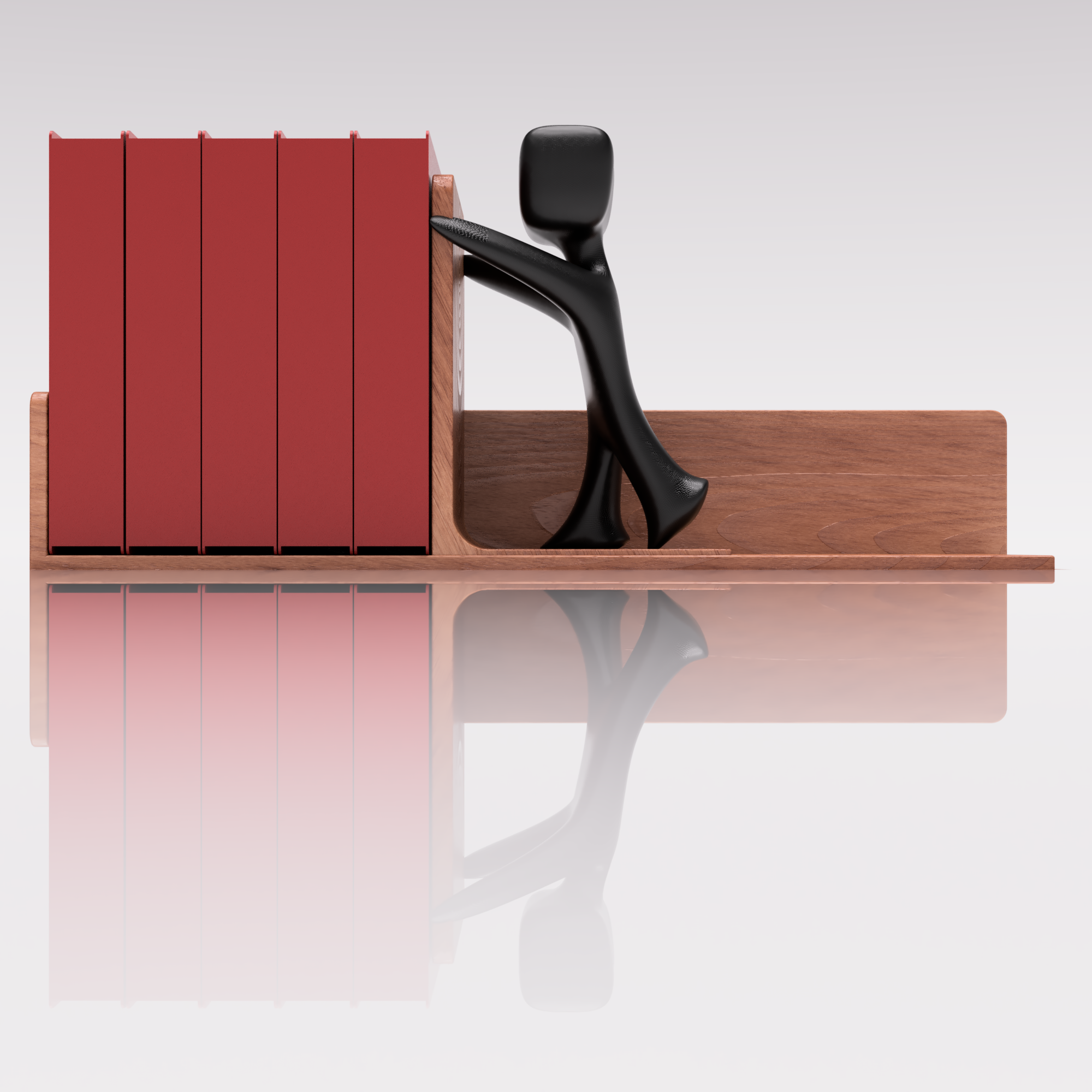

Buddy Bookshelf
Sliding shelf · Render Weekly S6:W2
Blow O Whale
Toy mechanism
Repulse GT
Concept vehicle
Personal · Concept

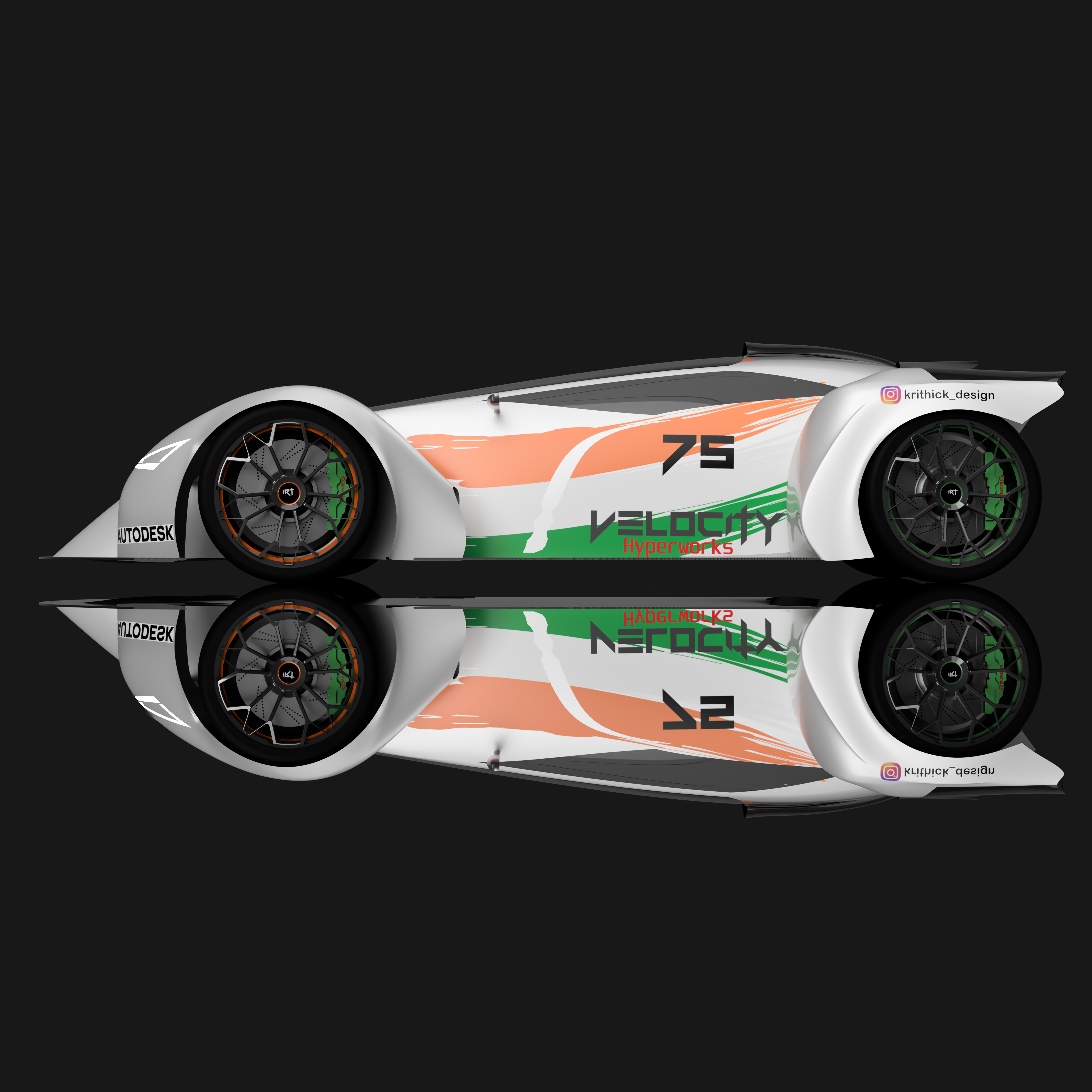

Project Zeke
A hybrid endurance racing hypercar, surfaced and rendered from scratch — revealed in a tricolour livery.
{{ npKicker }}
{{ npTitle }}
{{ npSummary }}
{{ ap.title }}
{{ ap.kicker }}
Krithick Ravi ← Industrial Design
Product Design Prototyping · THI · SoSe 25

Vortège

A countertop juicer built around chaotic mixing: a transparent sphere, three axes of counter-rotating blades, and no buttons at all.

The brief

Blenders had stopped being interesting to look at. Standard machines shear on one axis, leave fibrous fruit gritty, and hide the whole process behind opaque plastic. The brief was a premium countertop juicer that extracts better and is worth watching.

The move

Three axes of counter-rotating titanium blades inside a reinforced polycarbonate sphere. The opposing rotation cancels torque — so the machine stays still — while generating high-shear turbulence that breaks down fibre other blenders leave behind.

The interface

No buttons. Rub the orb to start, adjust speed, or shut down — haptic control borrowed from a lamp, not an appliance. Interior LEDs light the vortex so the extraction reads as theatre.

CAD & engineering detail

Two blade sets, opposed.

Primary blades drive the bulk flow; secondary blades run counter on offset axes, folding the flow back into itself. The result is chaotic advection rather than a single circulating vortex — the same principle industrial mixers use to homogenise viscous media.

Chamber
Reinforced polycarbonate
Blades
Titanium, 3-axis
Lid
Magnetic, sensor-interlocked
Control
Haptic surface + analog dial

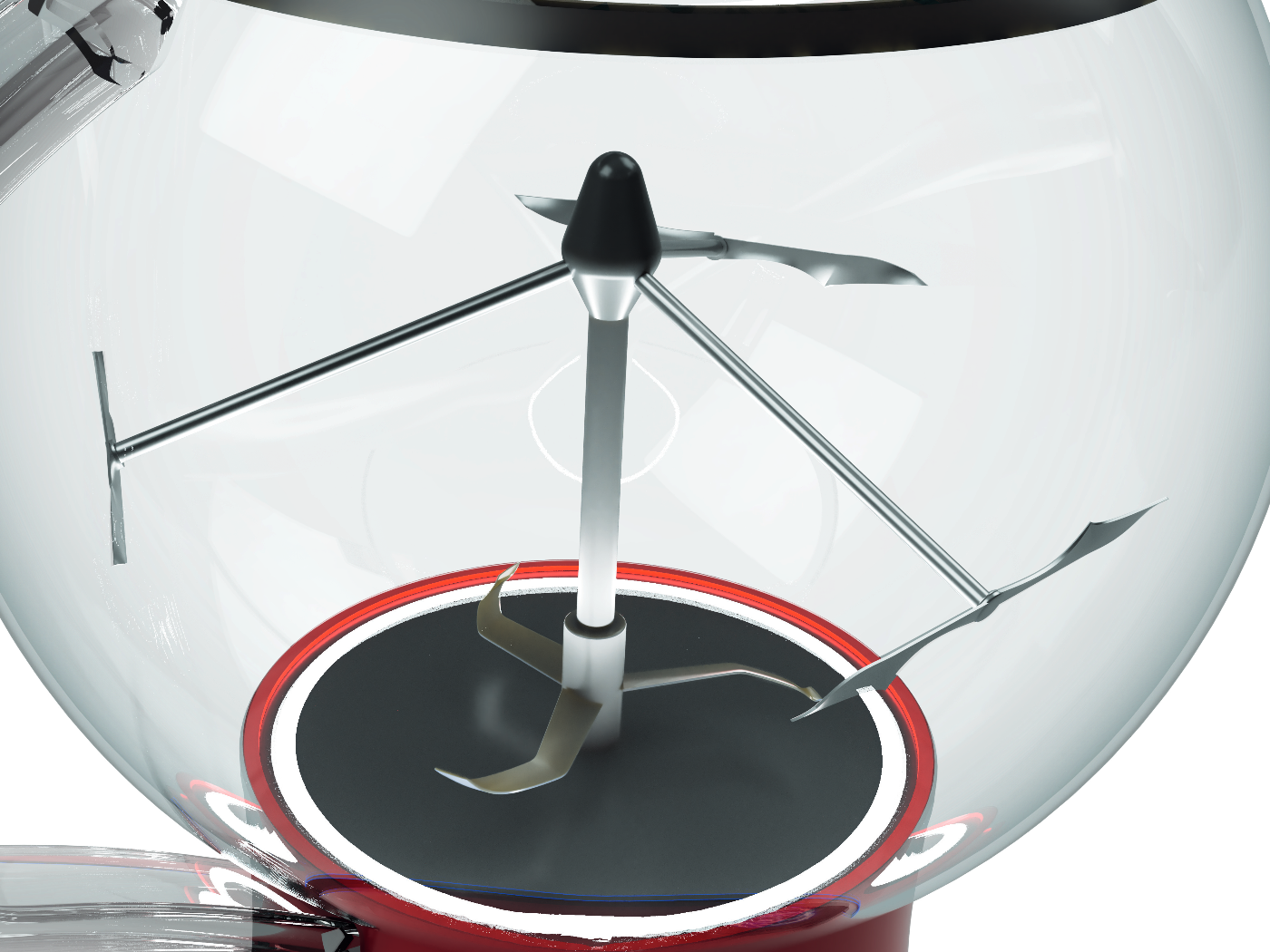

Counter-rotating blade assembly inside the polycarbonate sphere
Process
Final renders

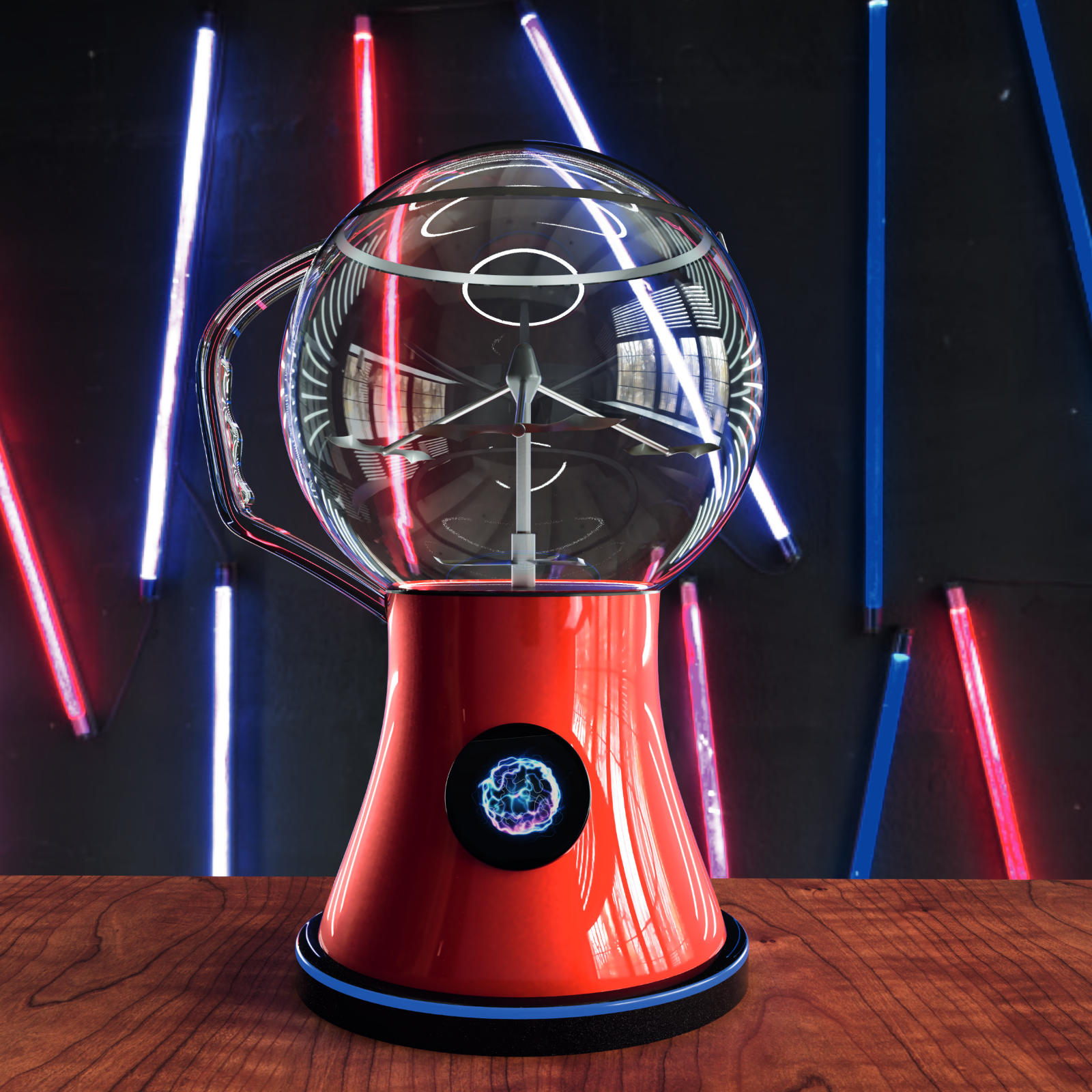

Vortège on a wooden counter under neon tubes
Vortège studio render
Drag to orbit · scroll here to zoom
Assembly
Scroll anywhere outside the stage to separate the assembly. This is the real CAD geometry, not a render.
Exploded
{{ explodePct }}
Krithick Ravi
Open to product design and development roles in Bayern.
Krithick Ravi ← Industrial Design

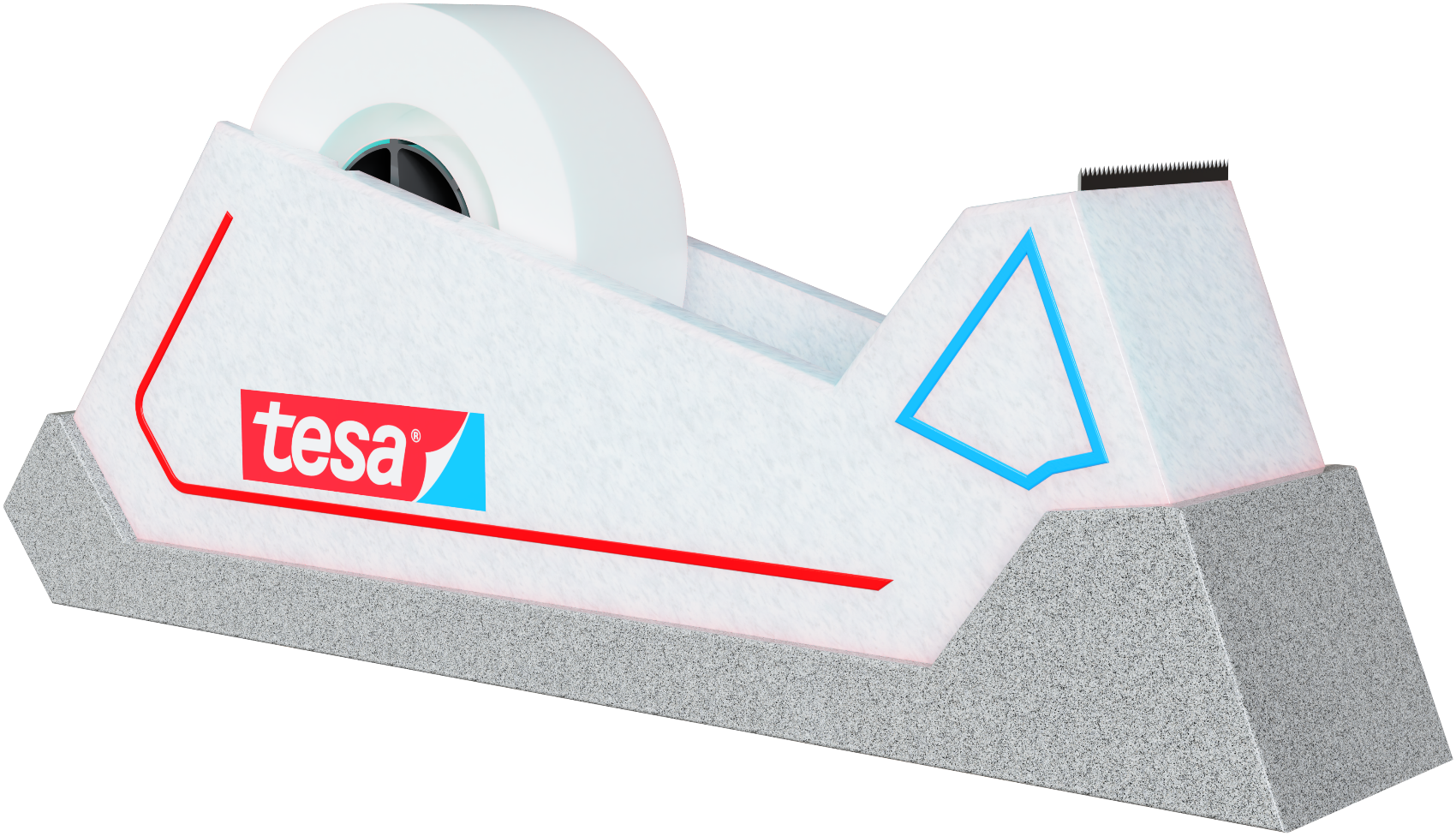

tesa Sporty Block dispenser in the stone-look CMF
tesa × THI · Product design · SoSe 25

Sporty Block

A desk dispenser you work with one hand: weight in the base so it never chases the tape, a blade edge you can find without looking, and a wedge silhouette that reads as tesa from across the room.

My role
Product Designer — form, CMF, CAD and rendering
Team
Seven — product design, research, strategy, comms, PM
Tools
Fusion 360 · KeyShot · 3D print mock-ups
Client brief
A dispenser worth putting on a professional desk
The problem

Everyone owns a dispenser. Nobody likes using one.

Research turned up the same five complaints in every workplace we looked at — and none of them are about adhesion. They are about the object.

Two hands to tear one strip — one to hold the dispenser down.
The cut end disappears back onto the roll and has to be picked at.
The blade is either hard to find or unpleasant to find.
Light bodies slide and tip on the desk mid-pull.
Repeat use leaves wrist and hand discomfort in packing work.
What tesa asked for

Brand recognition, an iconic form, smart handling, premium materiality and creative expression inside the brand guidelines. Their own design characteristics were the scorecard we designed against.

Iconic Robust Precise & modern Premium Trustworthy Minimal & functional Heritage
Where I worked

The team split the characteristics into four design routes. I took Robust and drove it to a resolved product — Sporty Block — then built Flick Flack as the counter-proposal: what the same brief looks like if the dispenser moves instead of sits.

CMF routes

Three materials, three arguments.

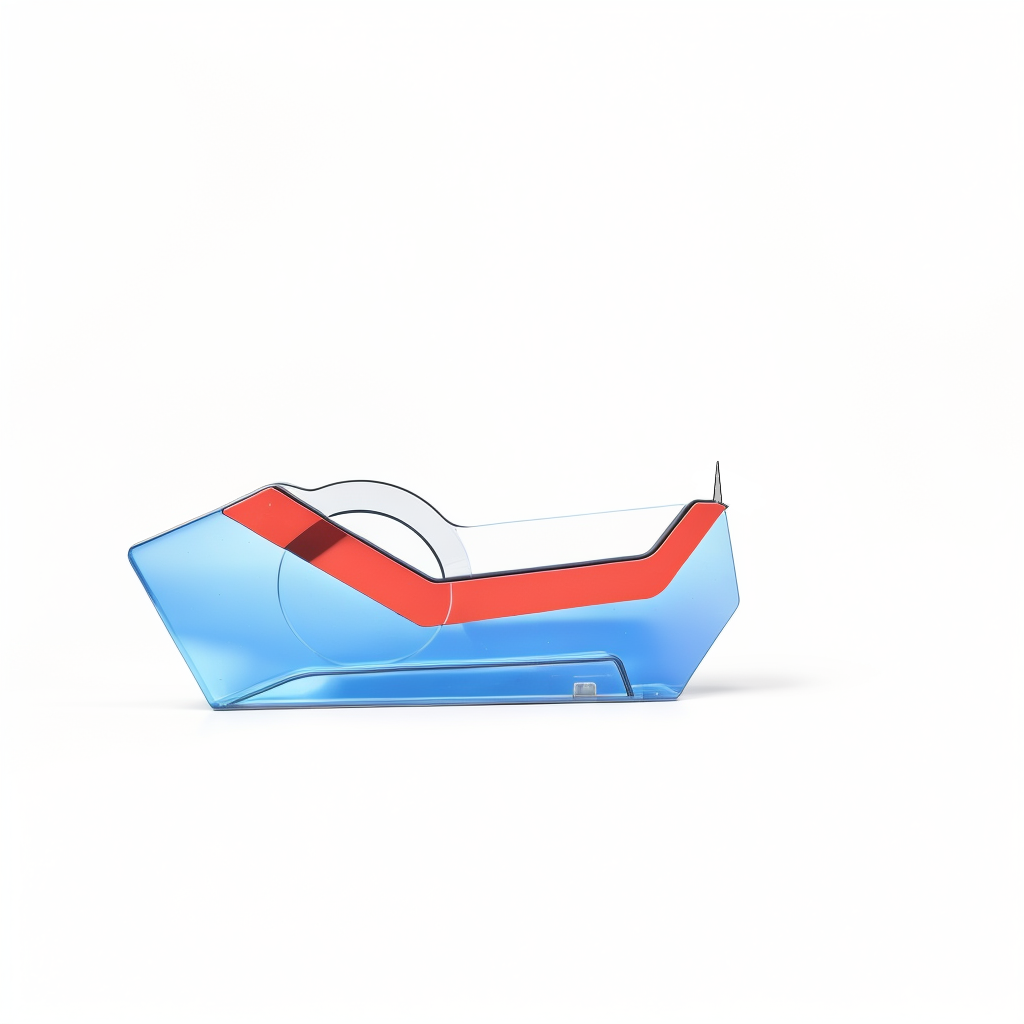

Glass-look resin dispenser study
Cast resin, glass-look
Recycled resin with the red and blue held inside the body rather than printed on it. Iconic, but expensive to hold in tolerance.

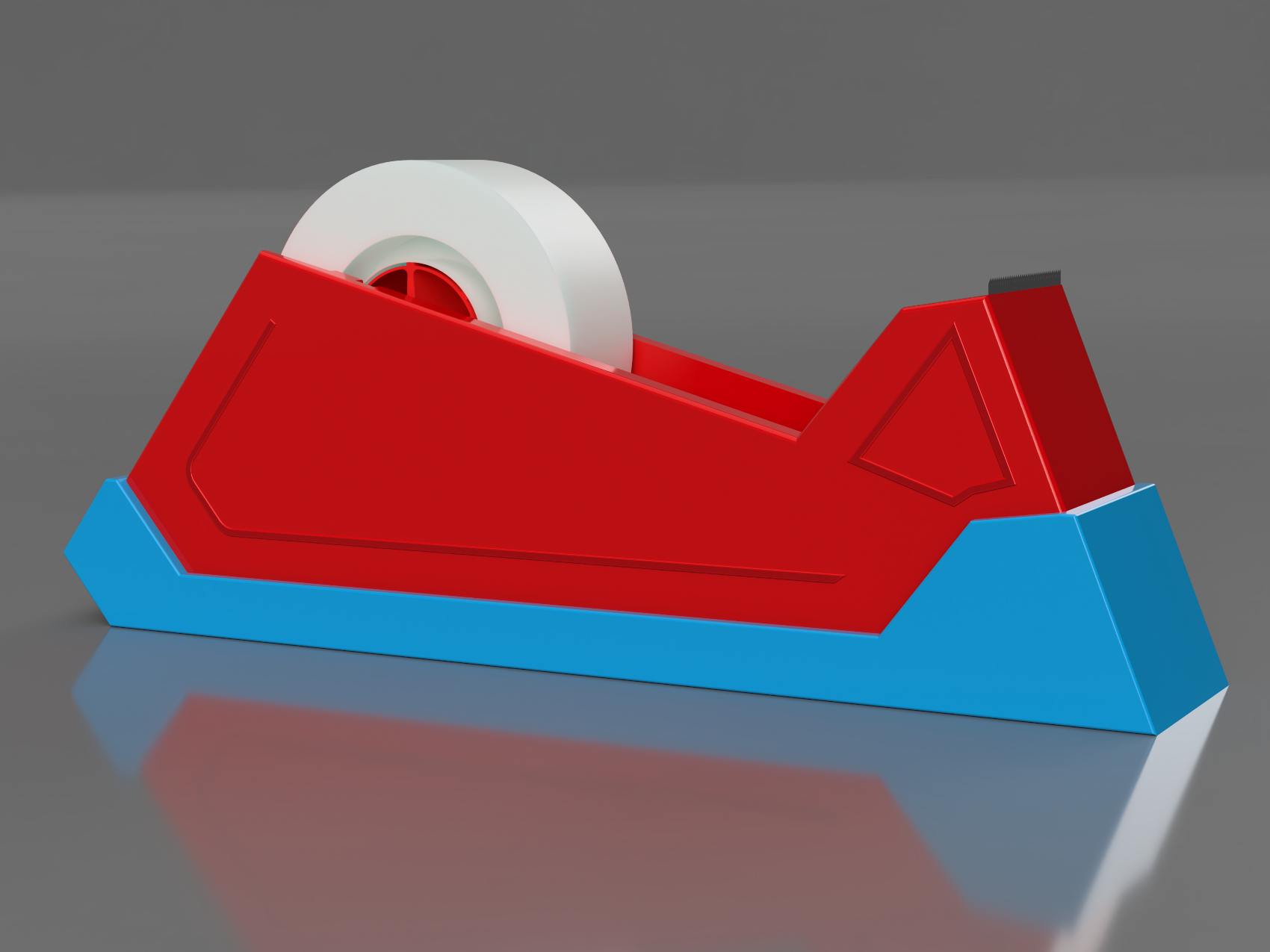

Sporty Block in red and blue ABS
Moulded ABS, brand colour
Red body on a blue base — the shelf-facing version, cheapest to tool and the loudest brand read.

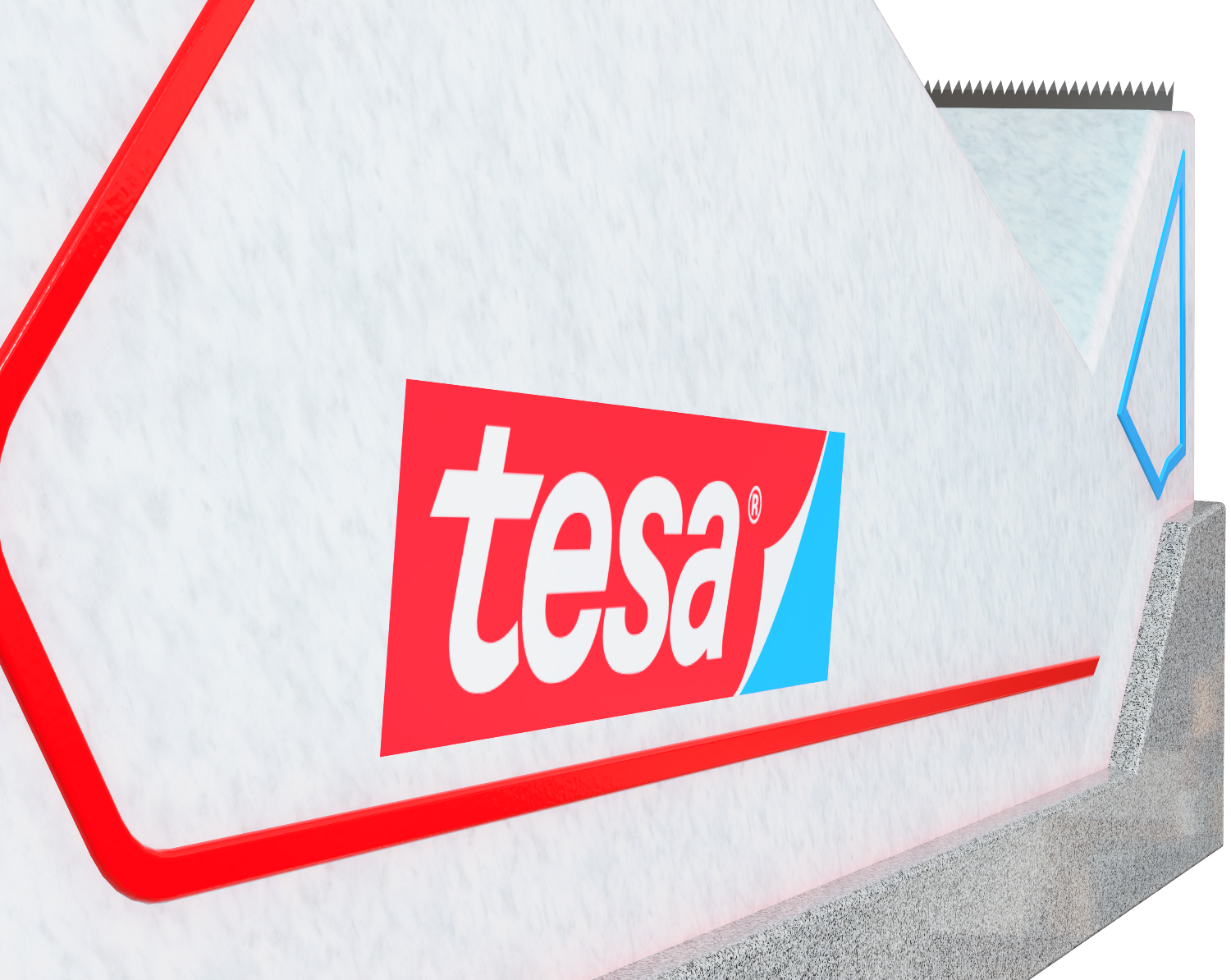

Stone-look body detail with tesa logo and blue triangle
Mineral composite, stone-look
The route I carried forward: mass where the product needs it, and a surface that puts it on a designer's desk instead of in a supply cupboard.
Form logic

Weight low, blade high, hand nowhere near it.

The body is a single wedge rising to the cutting edge, so the pull direction and the geometry agree: you draw tape up the slope and tear against a ridge that is already braced. The heavy base sits under the roll, where the moment is, which is what stops the slide that makes dispensers a two-hand job.

Everything brand-carrying is a recess, not a sticker: a chamfered arrow around the cutter, an embossed outline tracking the silhouette, and the logo dropped into a flat facet so it survives handling.

Body
Mineral composite or ABS
Base
Weighted, single-piece
Core
Standard 26 mm hub
Use
One-handed, seated or standing
Brand detailing on the Sporty Block body
Recessed outline, chamfered arrow, dropped-in logo
The counter-proposal

Flick Flack — a dispenser that folds shut.

Two arms on one hinge: open, the upper arm holds the roll and presents the cut end at hand height; closed, it collapses flat over its own blade and becomes a desk object with a pen channel. The knurled hinge disc is the grip, the brake and the brand mark in one part.

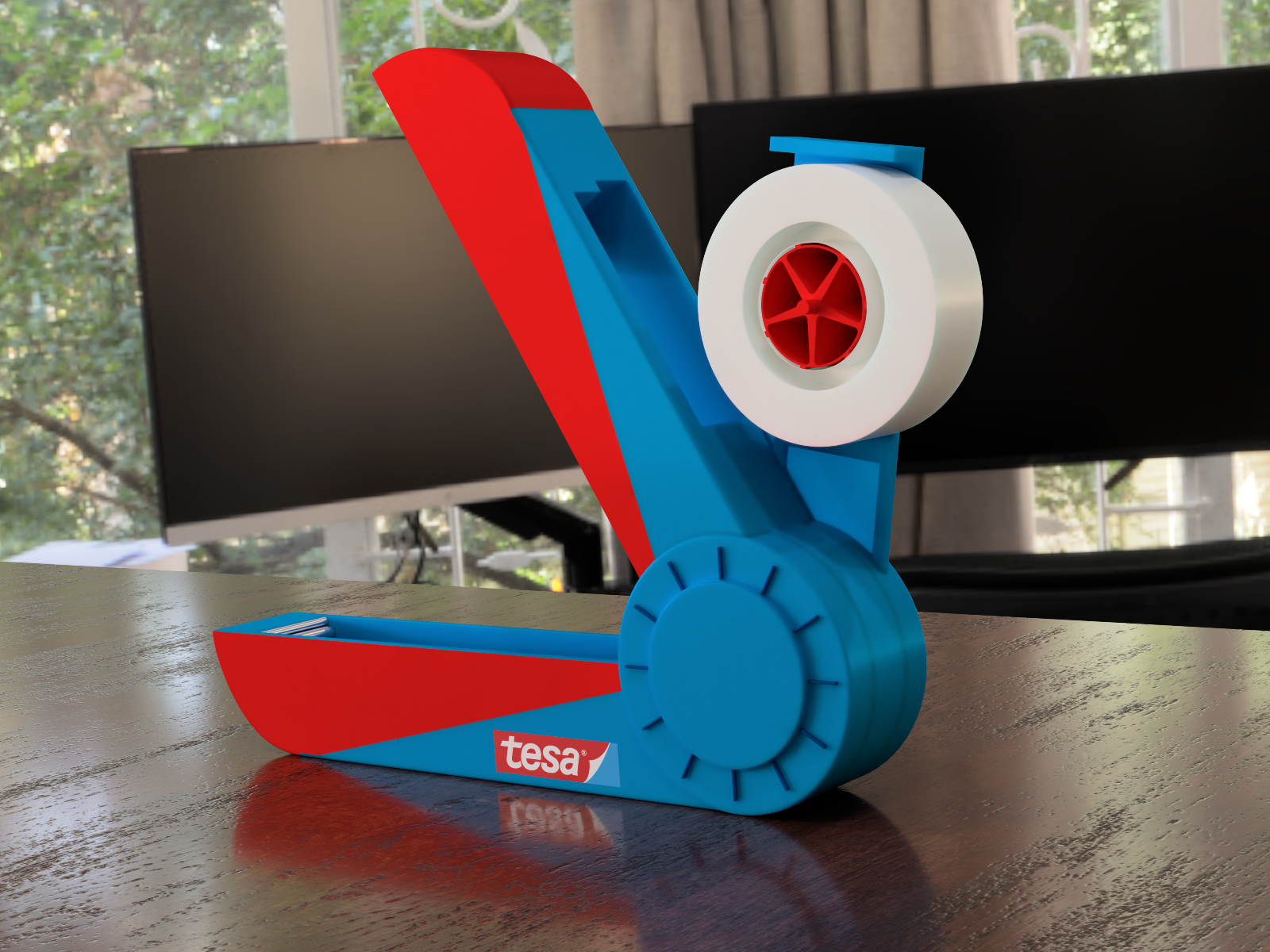

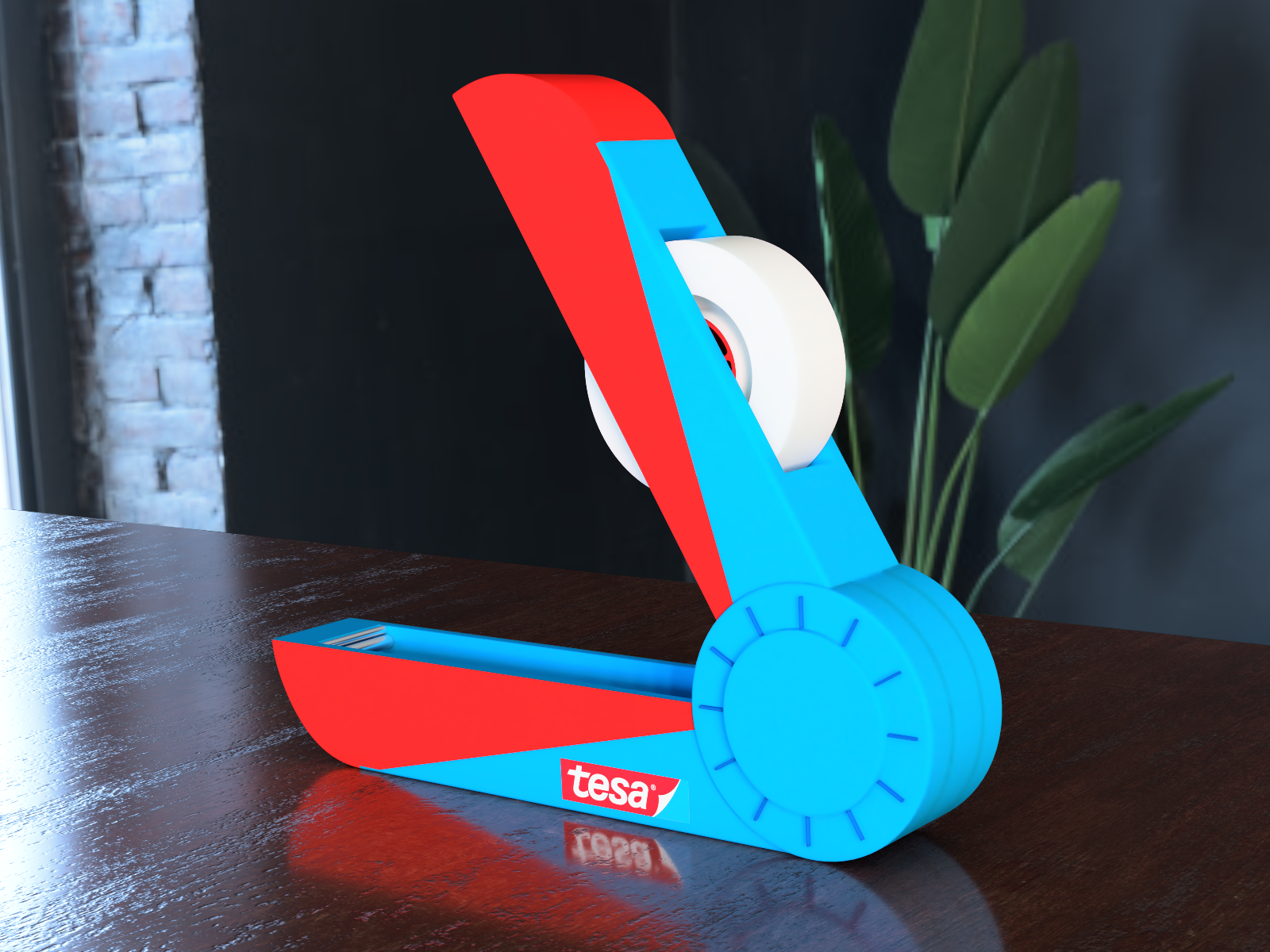

Flick Flack dispenser open on a desk Flick Flack dispenser in a dark interior

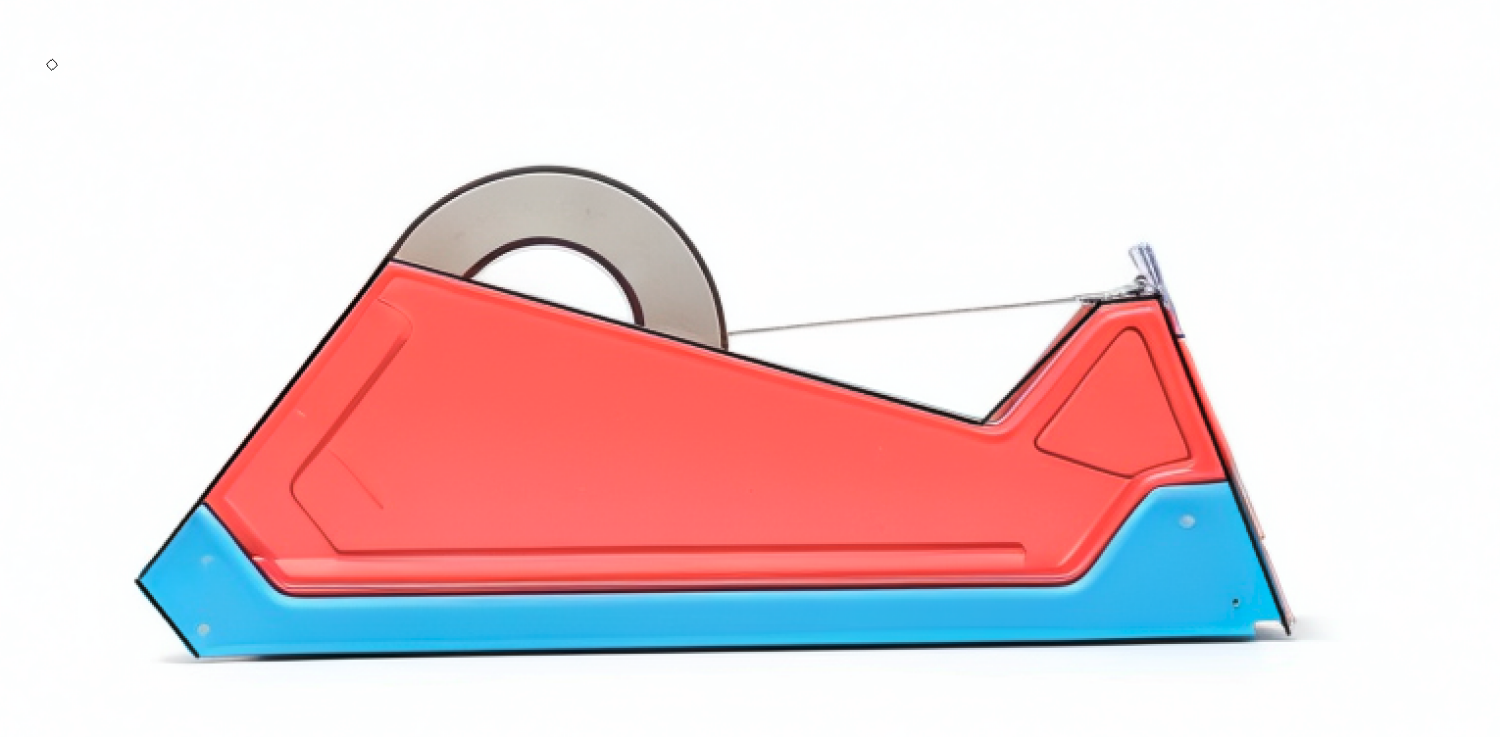

Printed prototype of the dispenser in red and blue
Printed mock-up · side profile check
In the hand

Printed at size to check the two things renders lie about: whether the slope reads as a pull direction without instruction, and whether the cutter sits where a thumb expects it. The profile got shallower and the cutter ridge moved forward after this one.

Presented to tesa alongside the team's other three routes as part of the final review.

What it argues

That the fix for a dispenser is mass and geometry, not features. Nothing here moves, latches or adjusts — the improvement is entirely in where the weight sits and which way the surface points.

What I'd do next

A weighted print in the real composite to test tip-over at the worst pull angle, a moulding review on the recessed detailing, and a hinge-life test on Flick Flack before either goes further.

In collaboration with
Client project run with tesa SE, Technische Hochschule Ingolstadt, summer semester 2025.
Krithick Ravi
Open to product design and development roles in Bayern.
Krithick Ravi
Industrial Design Mechanical Engineering Digital Tools
Profile 02 — Mechanical Engineering

Structure that has to hold, ship, and be serviced.

Load-bearing assemblies, mounts and enclosures — designed in Fusion 360 for real fabrication, tolerance and teardown. Industry work with Rohde & Schwarz, plus student competition structures.

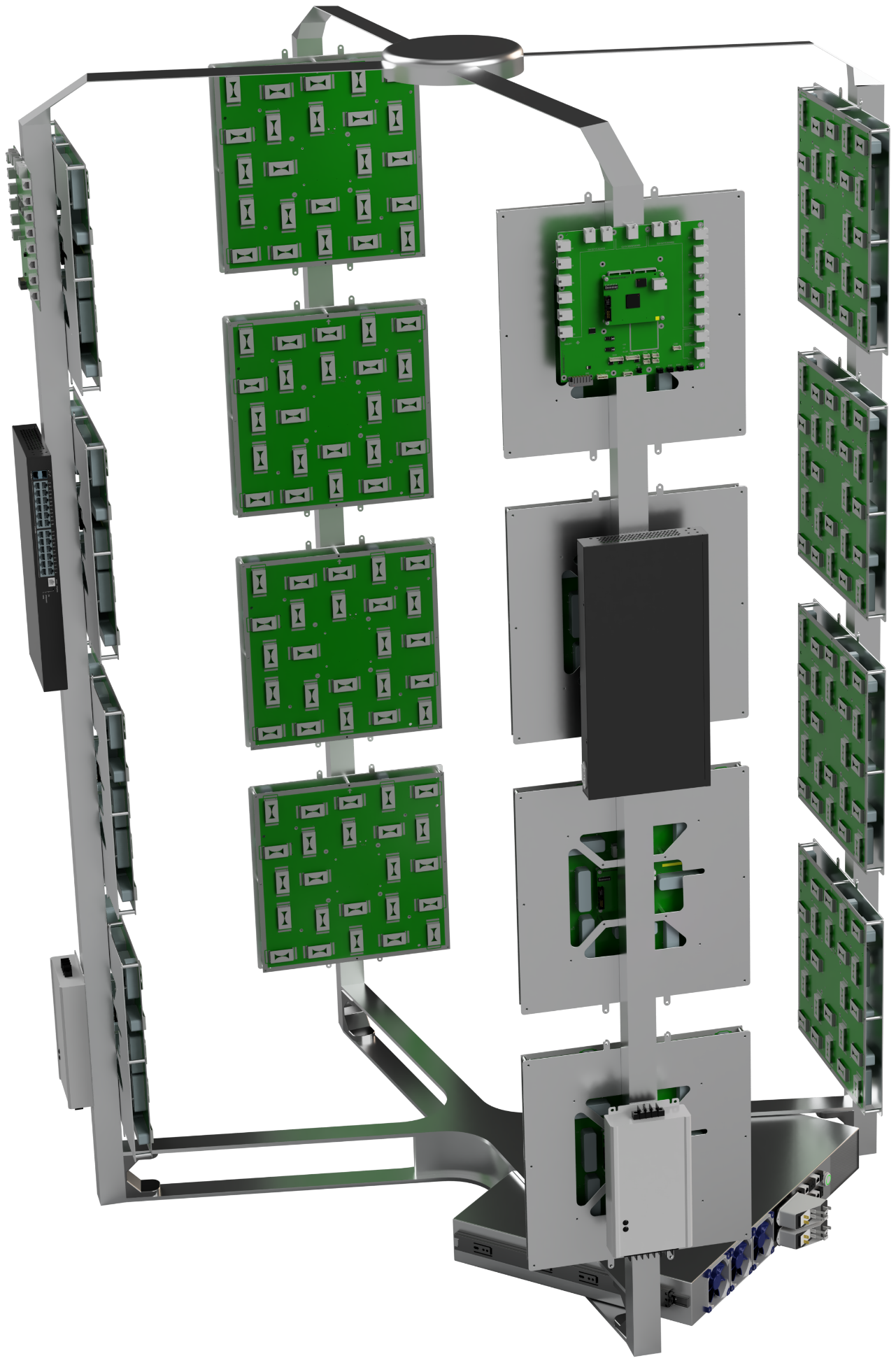

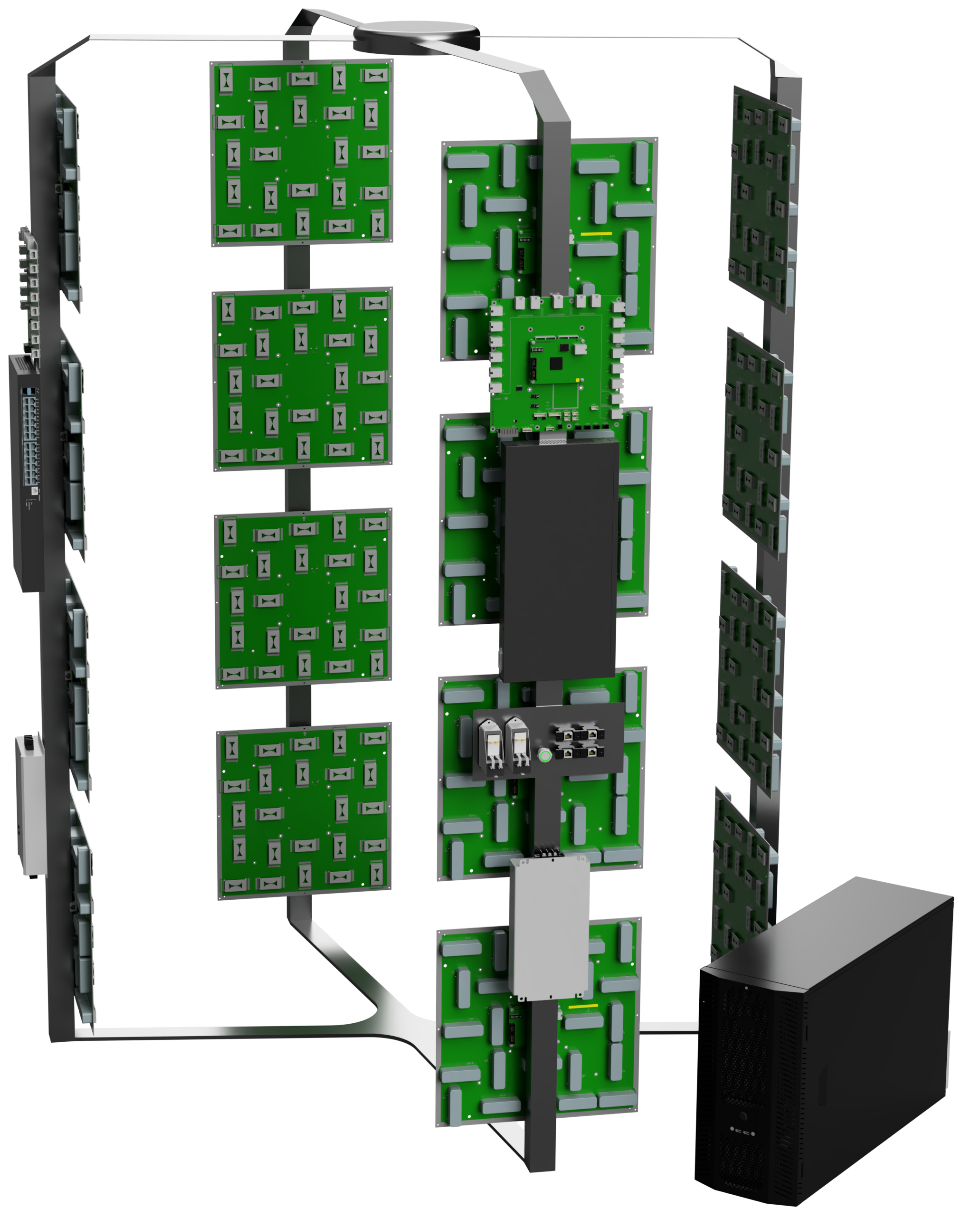

QPW500 endoskeleton
2025 · Rohde & Schwarz × THI
QPW500 Endoskeleton
The internal structure of a walk-through security scanner — modular, transportable, serviceable from the front.
Technical Designer NDA — capability shown

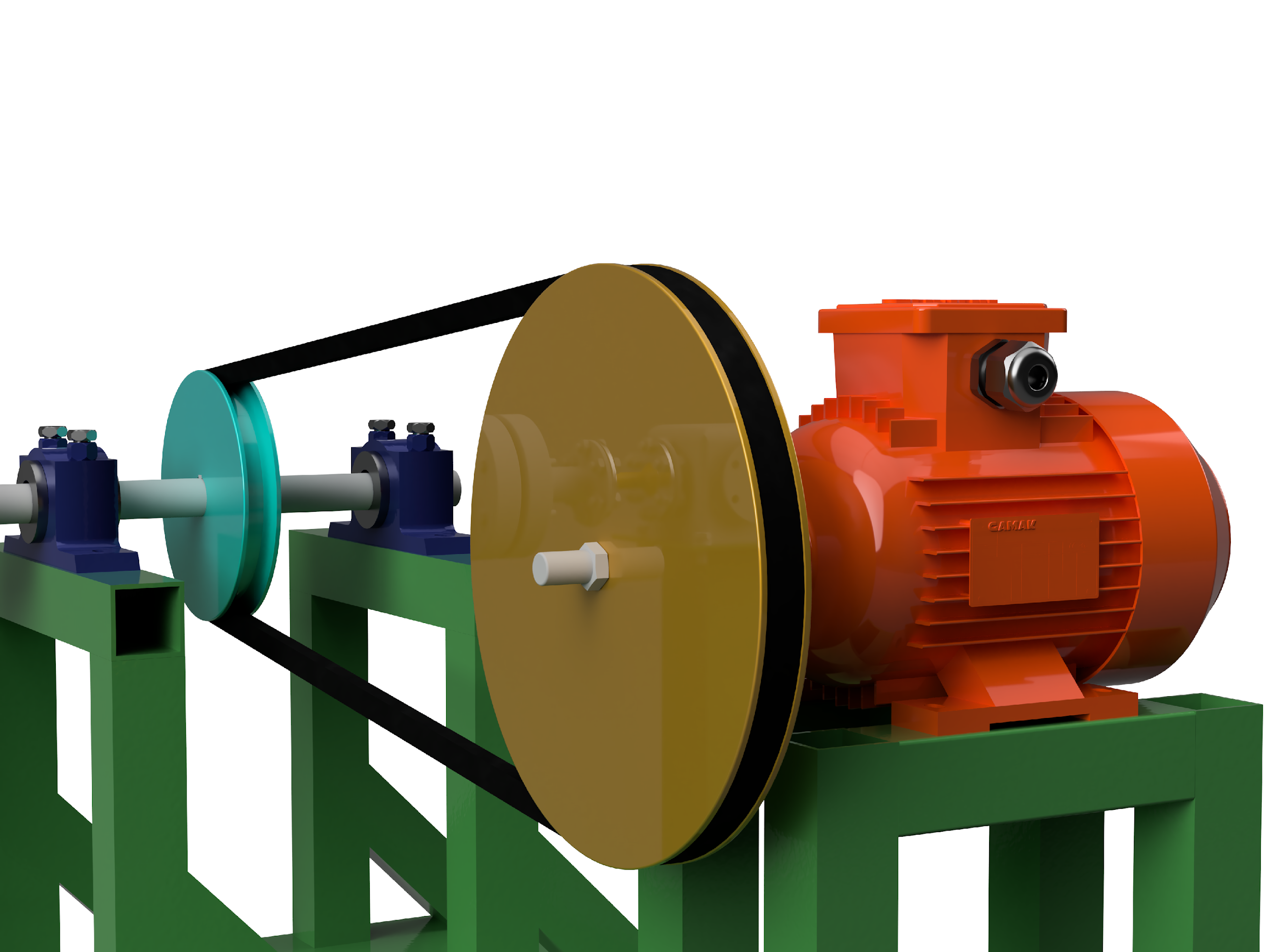

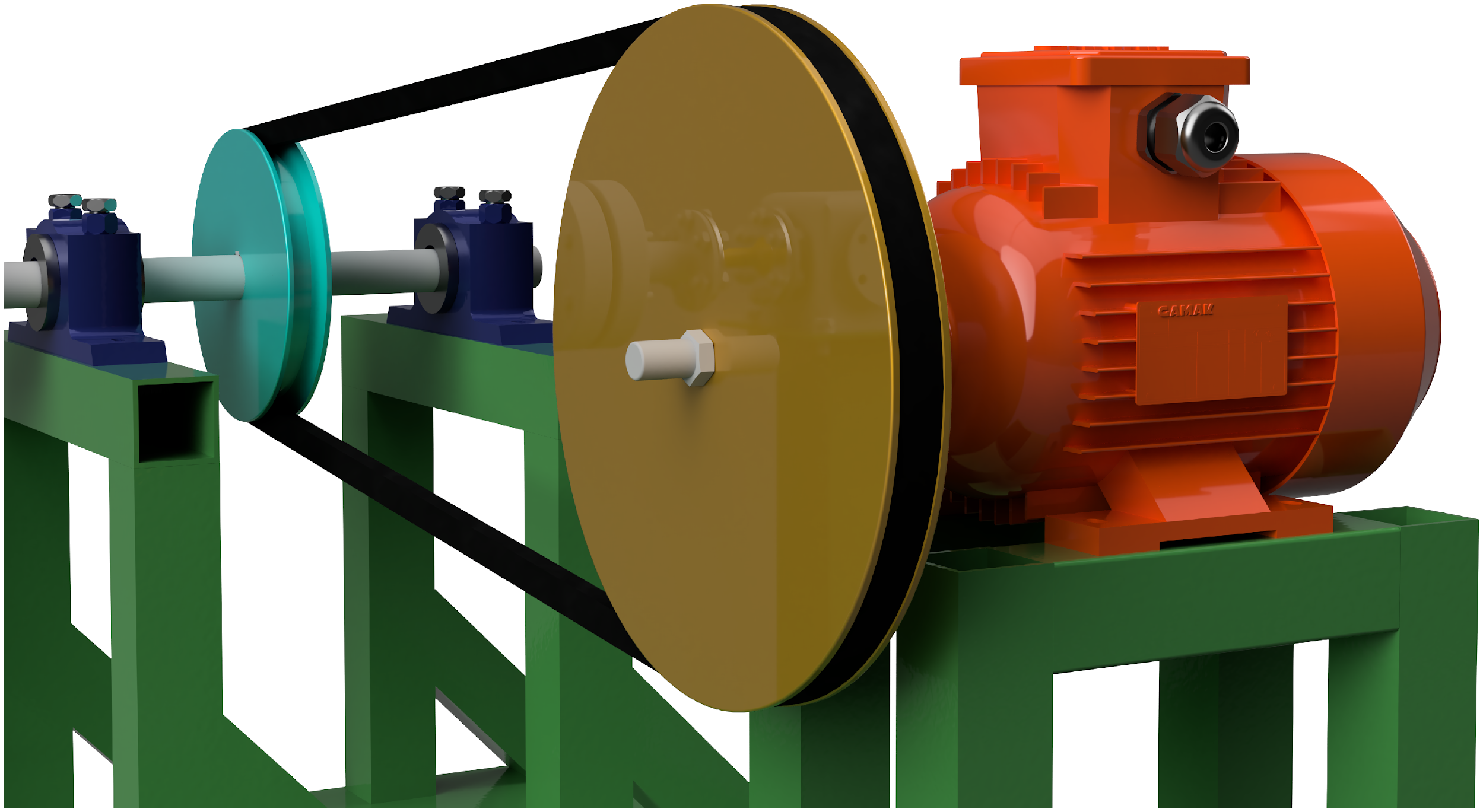

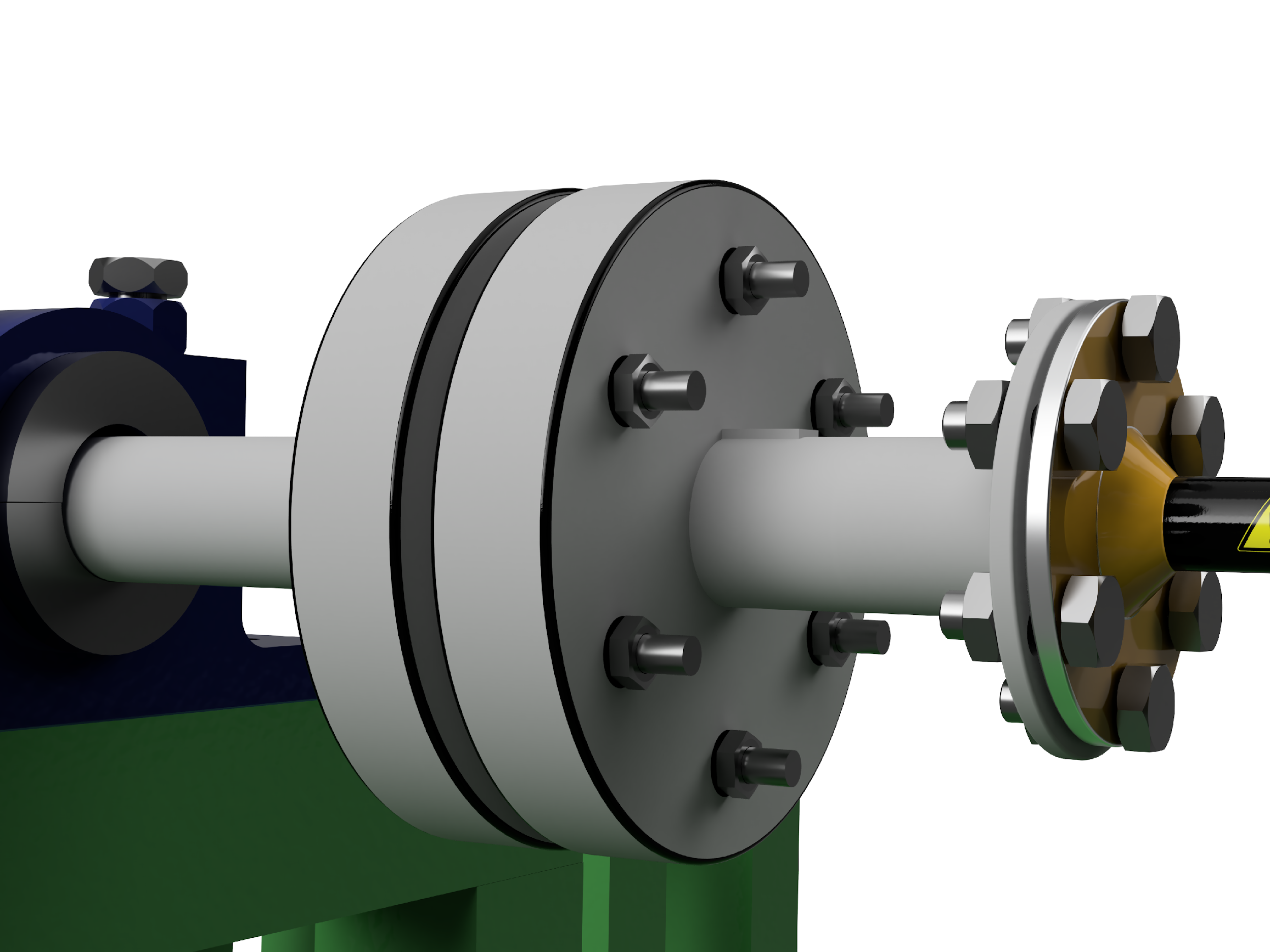

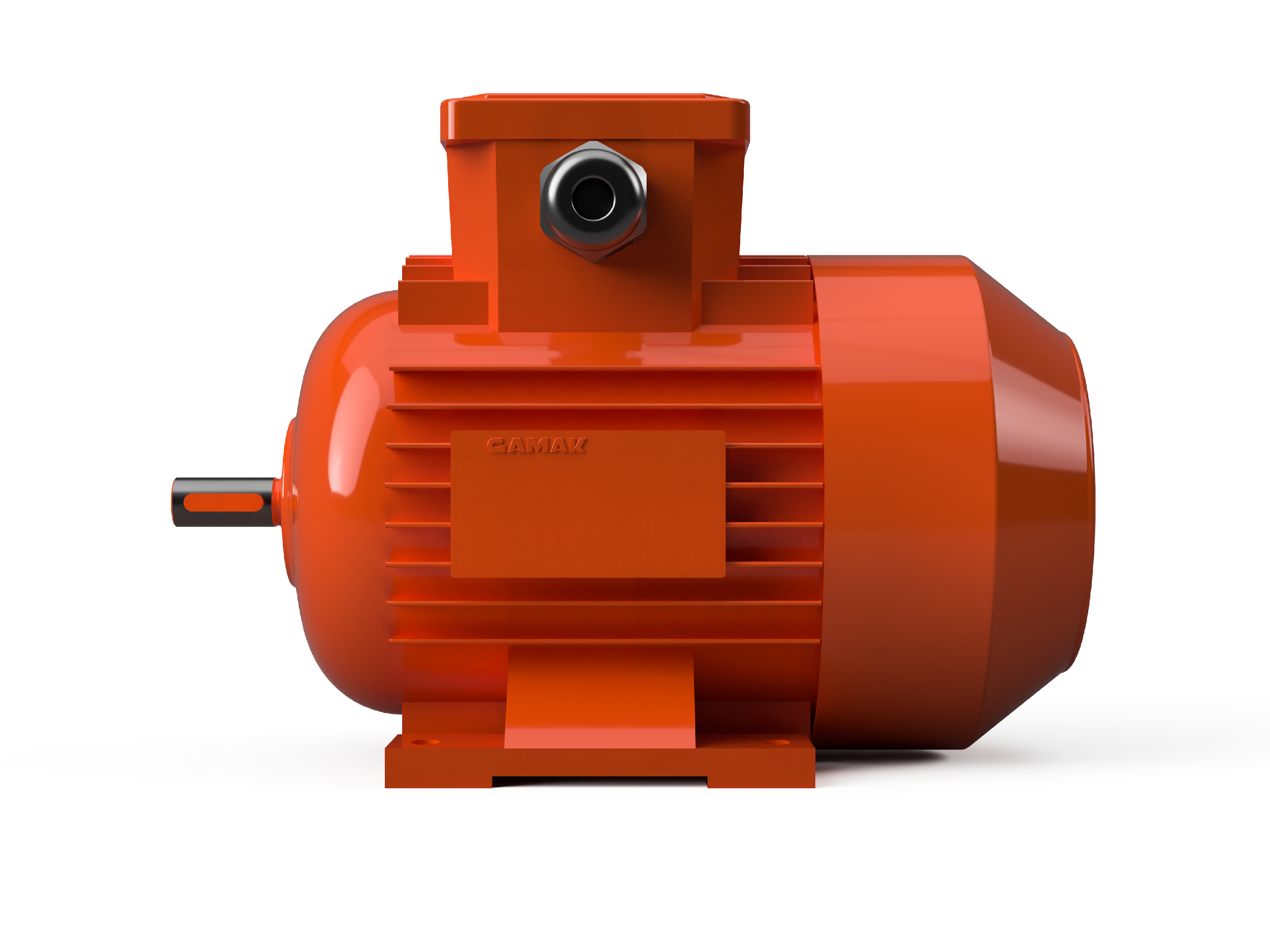

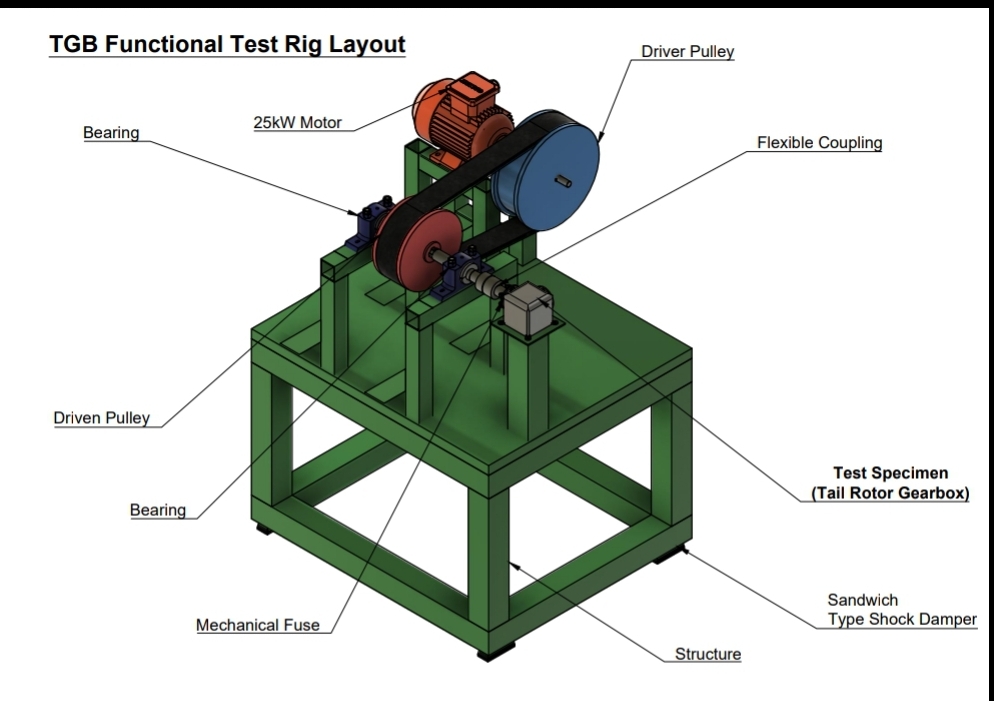

Test rig drive train — motor, V-belt and shaft on the frame
2022 · HAL Rotary Wing R&D Centre
Tail Gearbox Test Rig

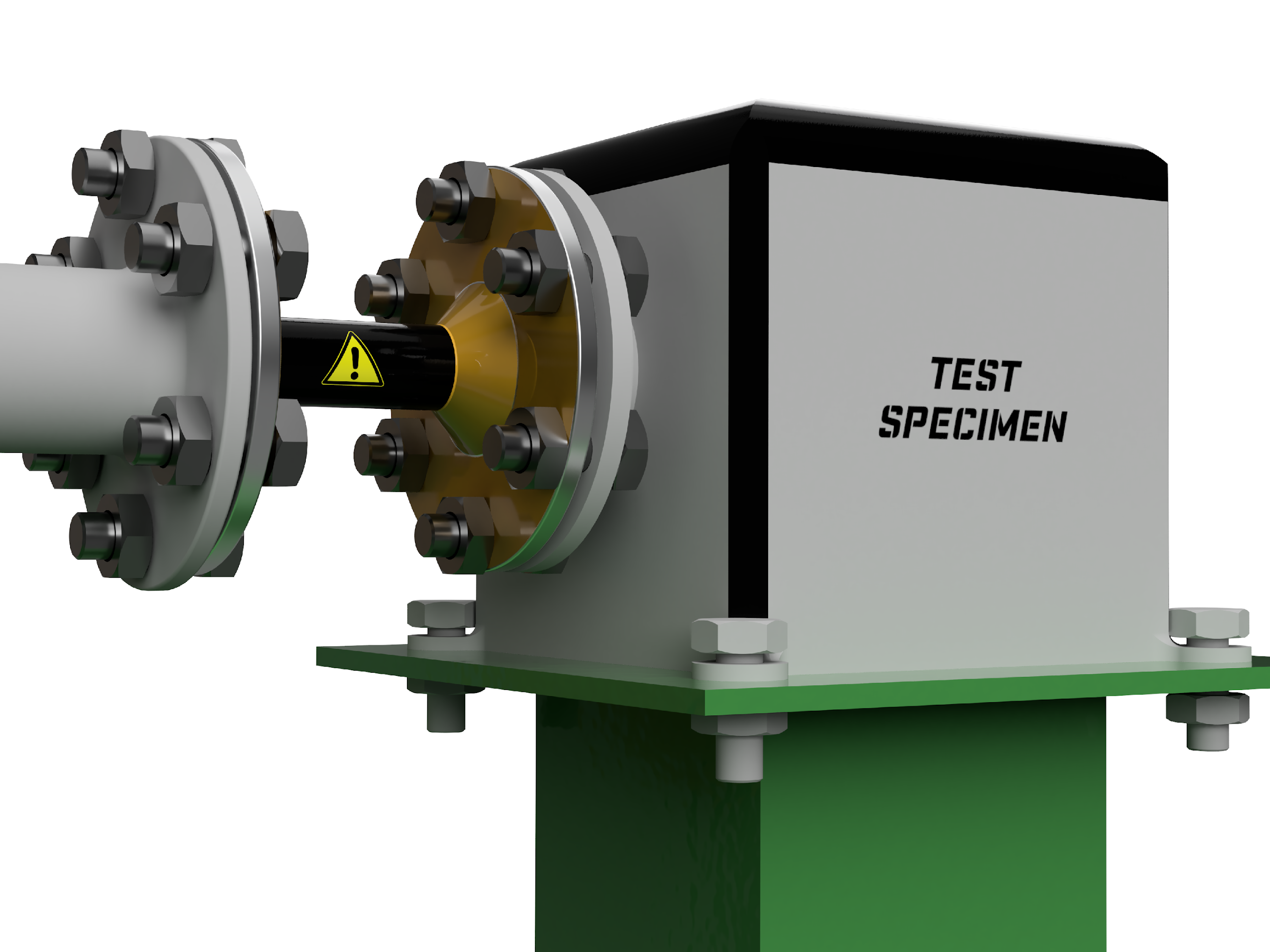

A ground rig to validate the tail rotor gearbox of HAL's RUAV-200 before it is ever bolted to an airframe.
Design & CAD NDA — capability shown

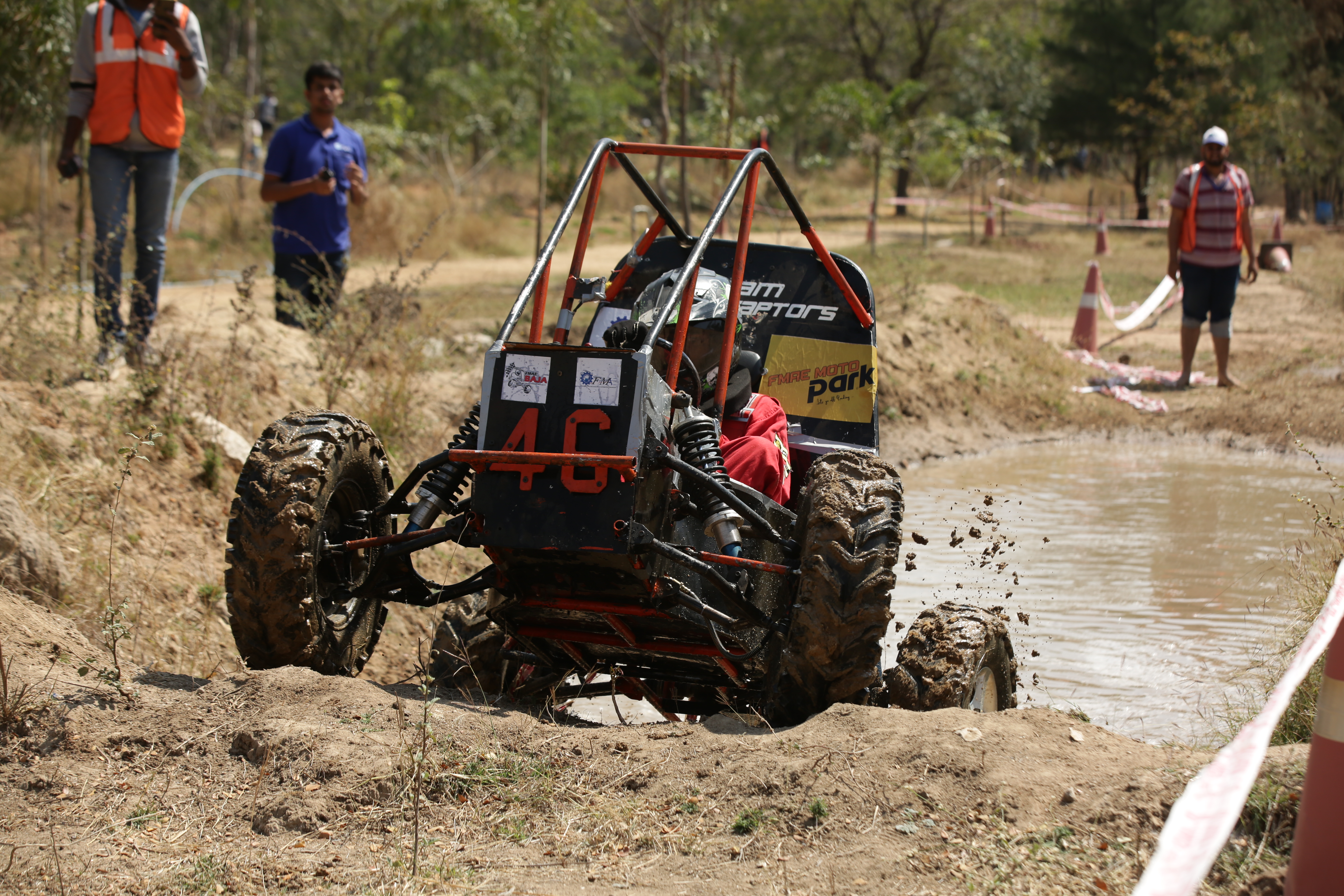

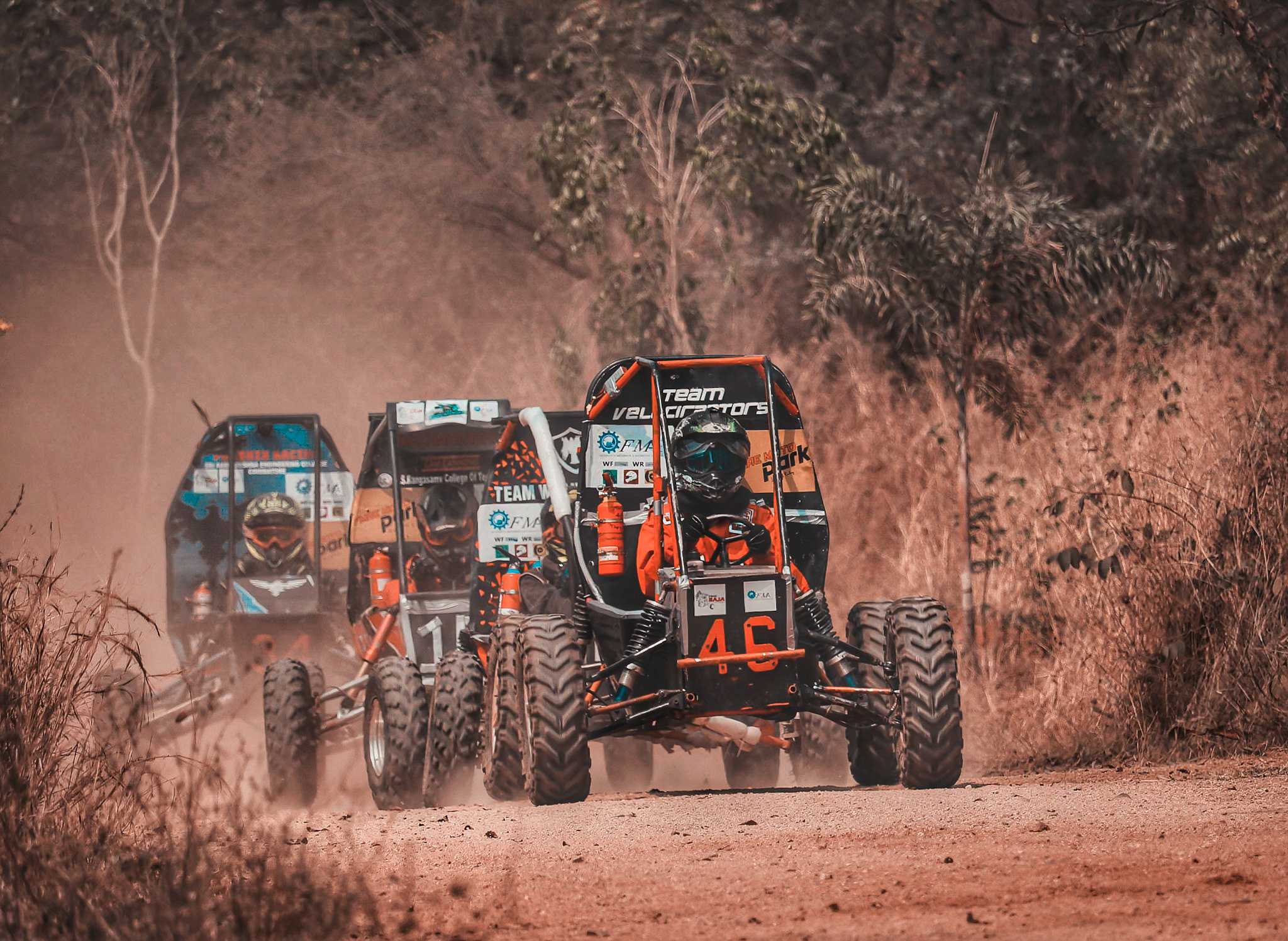

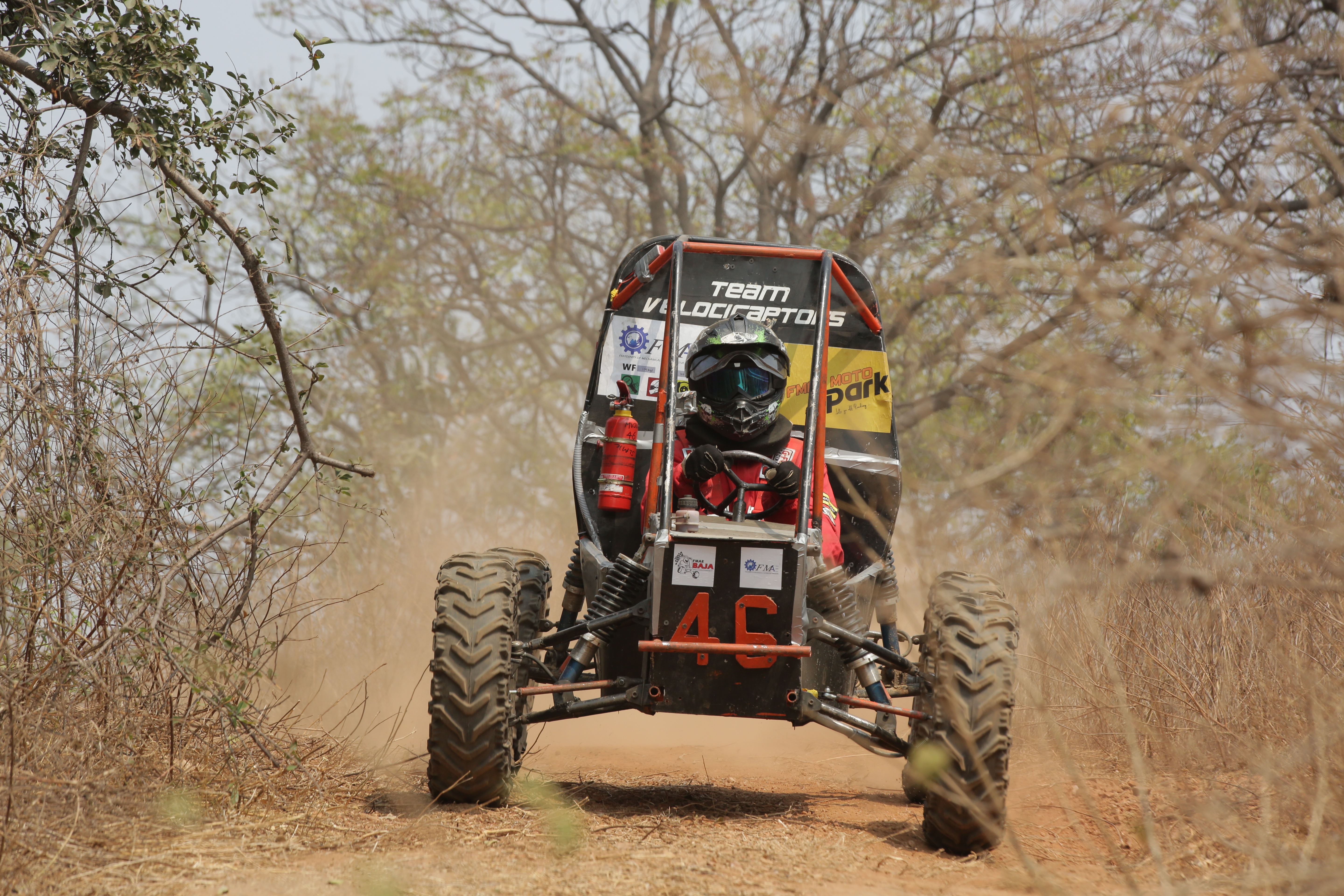

Car 46 on the trail at FMAE Moto Park
Baja ATV — Car 46
Lead Designer · FMAE BAJA Season 3, 2020
{{ npKicker }}
{{ npTitle }}
{{ npSummary }}
{{ ap.title }}
{{ ap.kicker }}
Aircraft — personal work

Airframes built for the practice of building airframes.

Concept aircraft modelled in Fusion 360 and SolidWorks, rendered in KeyShot. No brief, no client — surfacing practice that turned into a set of designs I keep returning to.

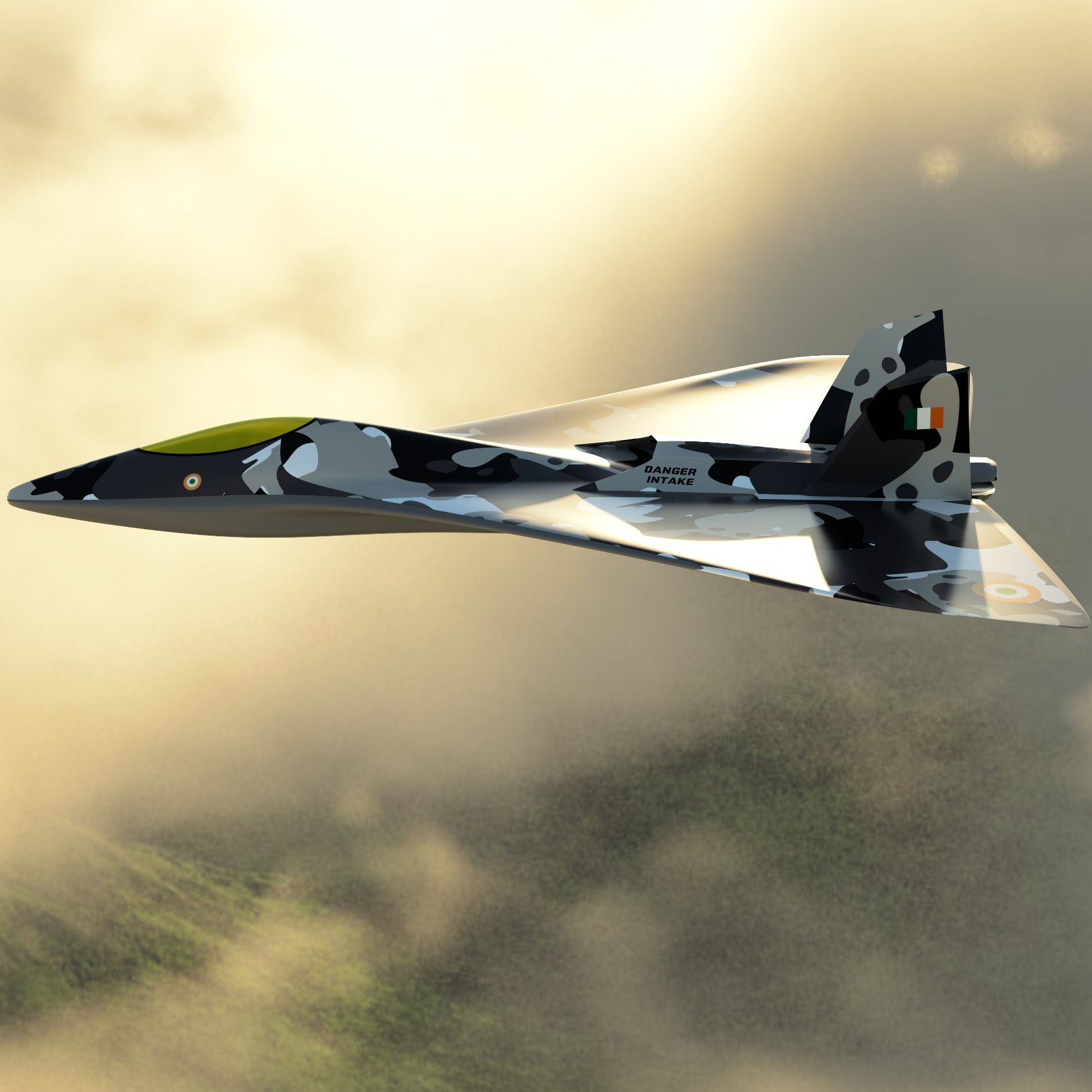

LS-01 Dark Wolf in flight
STEALTH FIGHTER JET
LS-01 Dark Wolf
Sixth-gen tailless delta built around super-low-altitude strike.

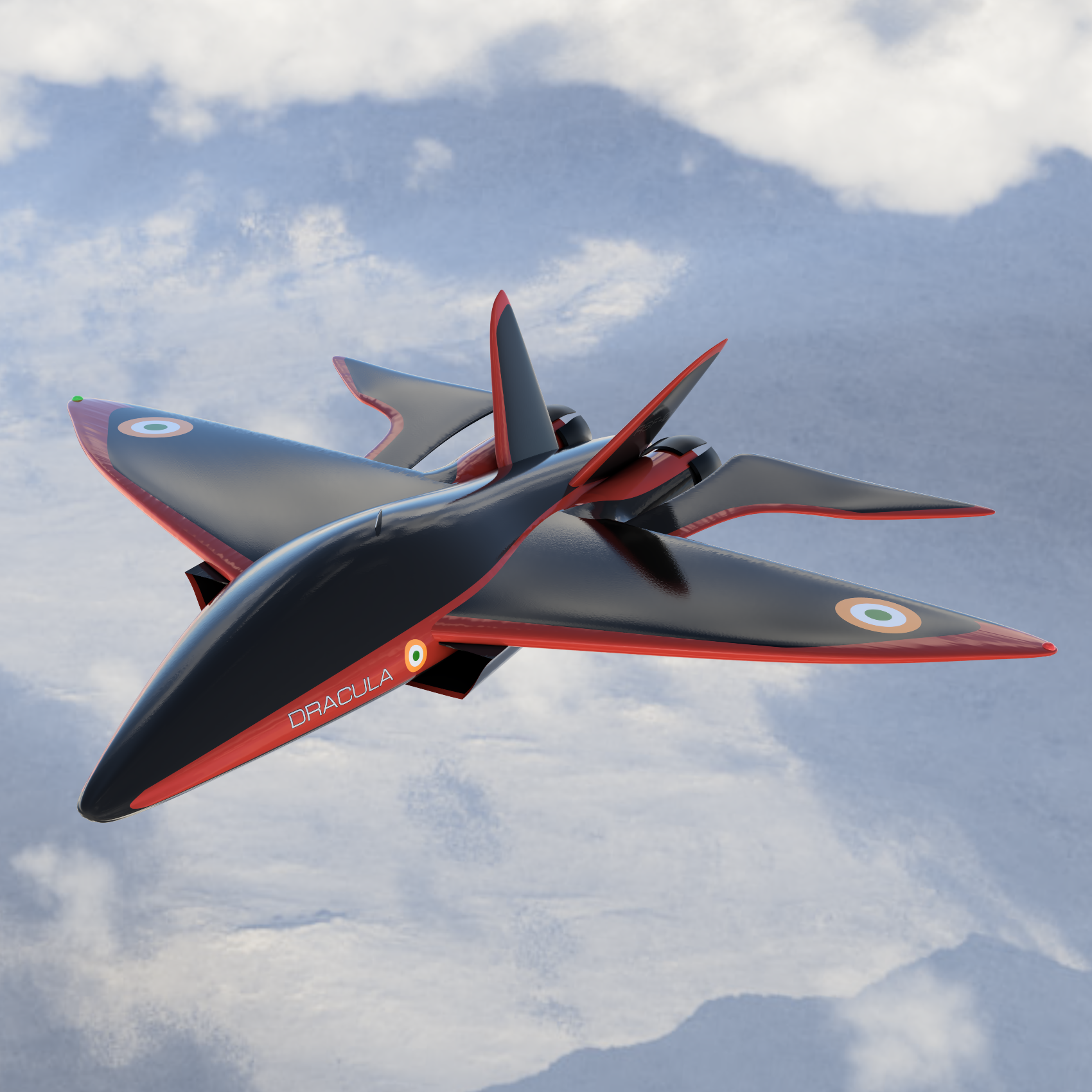

ASF-01 Dracula in flight
Combat UAV
ASF-01 Dracula
A joined-wing airframe that only works because nobody is sitting in it.
Sly Fox attack and reconnaissance helicopter
FARA concept
Sly Fox
Attack and reconnaissance, flown low and fast with a small radar return.
F/A-18 Legacy Hornet surfacing study
Surfacing study
F/A-18 Legacy Hornet
Somebody else's aircraft, rebuilt surface by surface to learn how.
Krithick Ravi ← Mechanical Engineering
LS-01 Dark Wolf in low-level flight
Personal concept · Stealth multirole combat aircraft

LS-01 Dark Wolf

A sixth-generation fighter designed around one mission the others treat as an edge case: the super-low-altitude strike. The fuselage and intake system cut the radar cross-section hard while still feeding the engines the air they need down there.

Role
Concept, CAD and rendering — all of it
Type
Tailless delta, single seat
Tools
Fusion 360 · SolidWorks · KeyShot
Status
Personal work — no brief, no client
Down in the weeds

Flying a strike profile at treetop height is a different design problem from flying one at altitude. The threat is short-range and it is looking up at you against ground clutter, so the payoff is in the planform seen from above and in never presenting a corner reflector.

So the whole aircraft became one continuous surface: a chined nose blending into a tailless delta, no vertical break anywhere along the top, and the intake moved to the shielded upper deck where the wing itself hides it from below.

Decisions the shape records
Dorsal intake, shielded by the wing — clean airflow, nothing for a ground emitter to see.
Tailless: the fins cant outward and stay small, so there is no vertical flat to bounce a return.
Every leading edge is parallel to another one — planform alignment, the oldest trick in the book.
Disruptive camouflage carried over the whole airframe, because down low the eye finds you before the radar does.

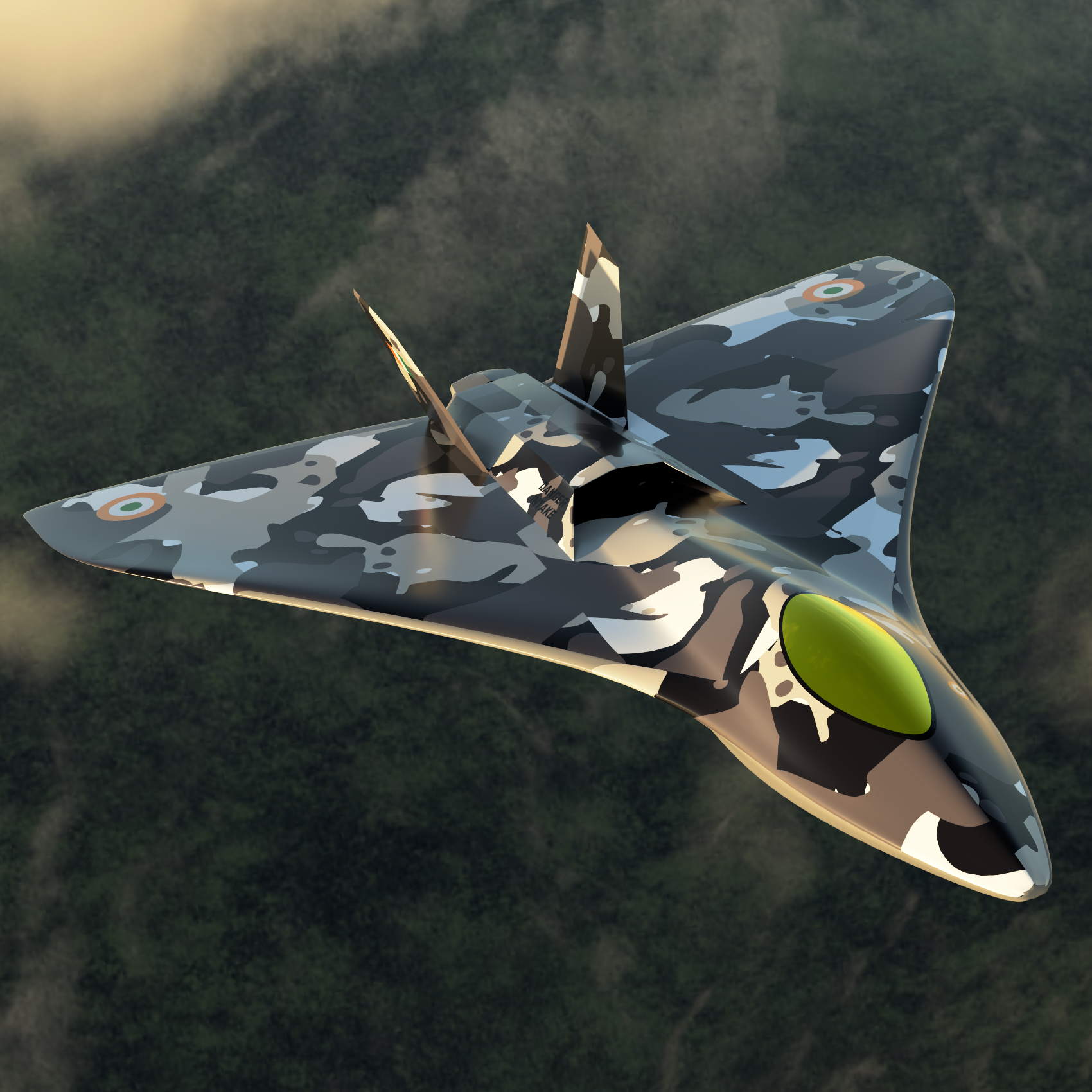

Dark Wolf from above and behind

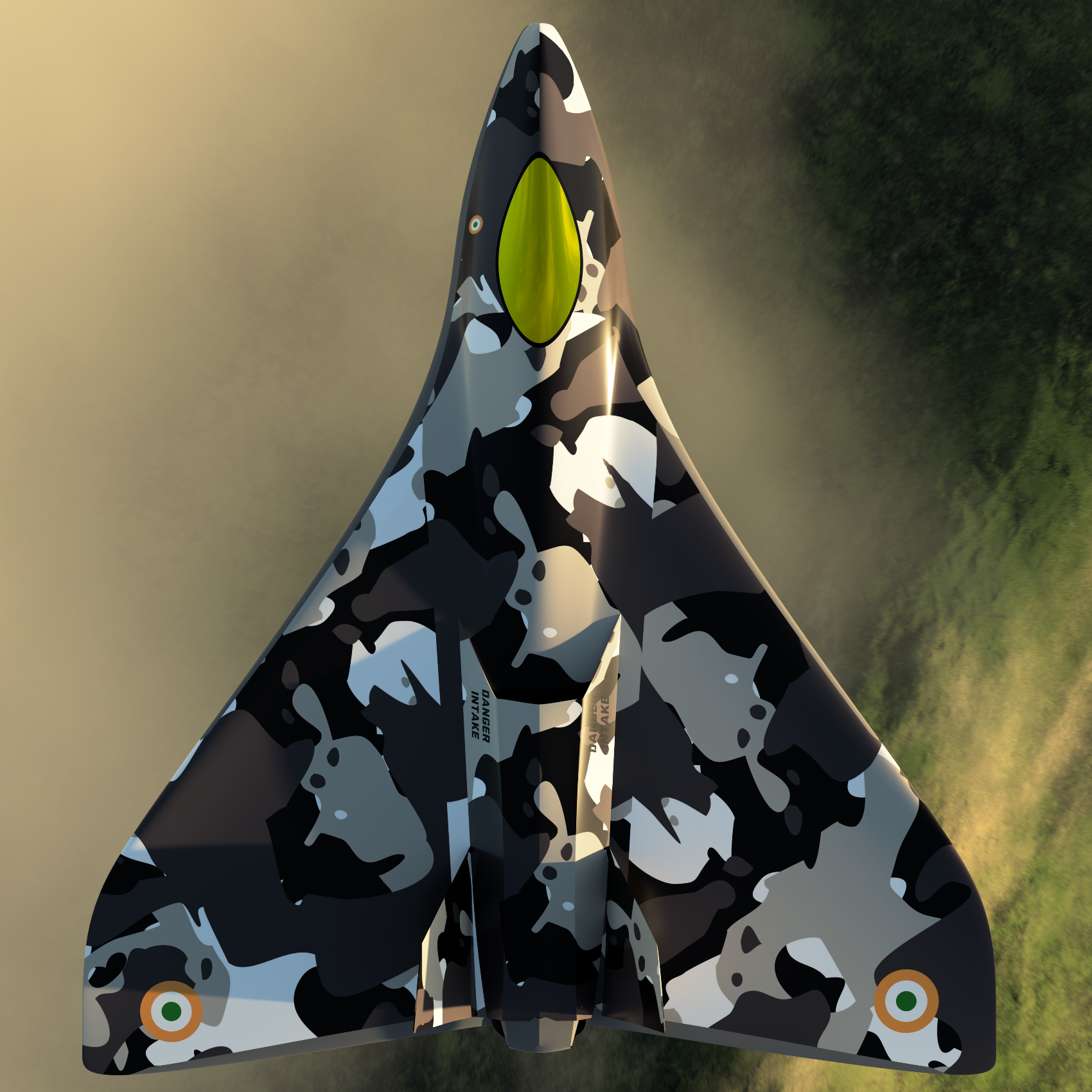

Dark Wolf planform from directly above
Dark Wolf head-on, canopy and intake visible
Planform view, top right: the delta reads as a single arrowhead with the intake buried in the spine. That silhouette is the entire design argument in one image.
Next aircraft
ASF-01 Dracula →
Krithick Ravi
Open to mechanical design and product development roles in Bayern.
Krithick Ravi ← Mechanical Engineering
ASF-01 Dracula banking above cloud
Personal concept · Autonomous Stealth Fighter programme

ASF-01 Dracula

A multirole combat UAV. Its structure allows manoeuvre that a manned aircraft could not survive — take the pilot out and the airframe stops being designed around a human's tolerance, so the shape is free to go somewhere else entirely.

Role
Concept, CAD and rendering — all of it
Type
Uncrewed, joined-wing, twin dorsal engines
Tools
Fusion 360 · SolidWorks · KeyShot
Modelled
2022 — personal work
No cockpit, no compromise

Almost every line on a fighter traces back to the person inside it: the canopy bulge, the seat rails, the g-limit that caps how hard you can turn. Delete the pilot and all of that goes with them.

What replaced it is a joined-wing layout — a forward lower plane running back into a swept upper plane, closing the structure into a loop. It is stiff for its weight, it carries control surfaces at both ends of a long moment arm, and it produces the one thing this aircraft is for: a rate of change of direction that would put a crew out cold.

Reading the airframe
Closed wing loop — the two planes brace each other, no external structure needed.
Engines sit on the spine, exhaust shielded from below by the fuselage.
Nose is unbroken glass-smooth volume — with nobody to see out, sensors go where the aerodynamics want them.
Red edge livery: a deliberate anti-camouflage, because this one is a demonstrator and it should look like one.

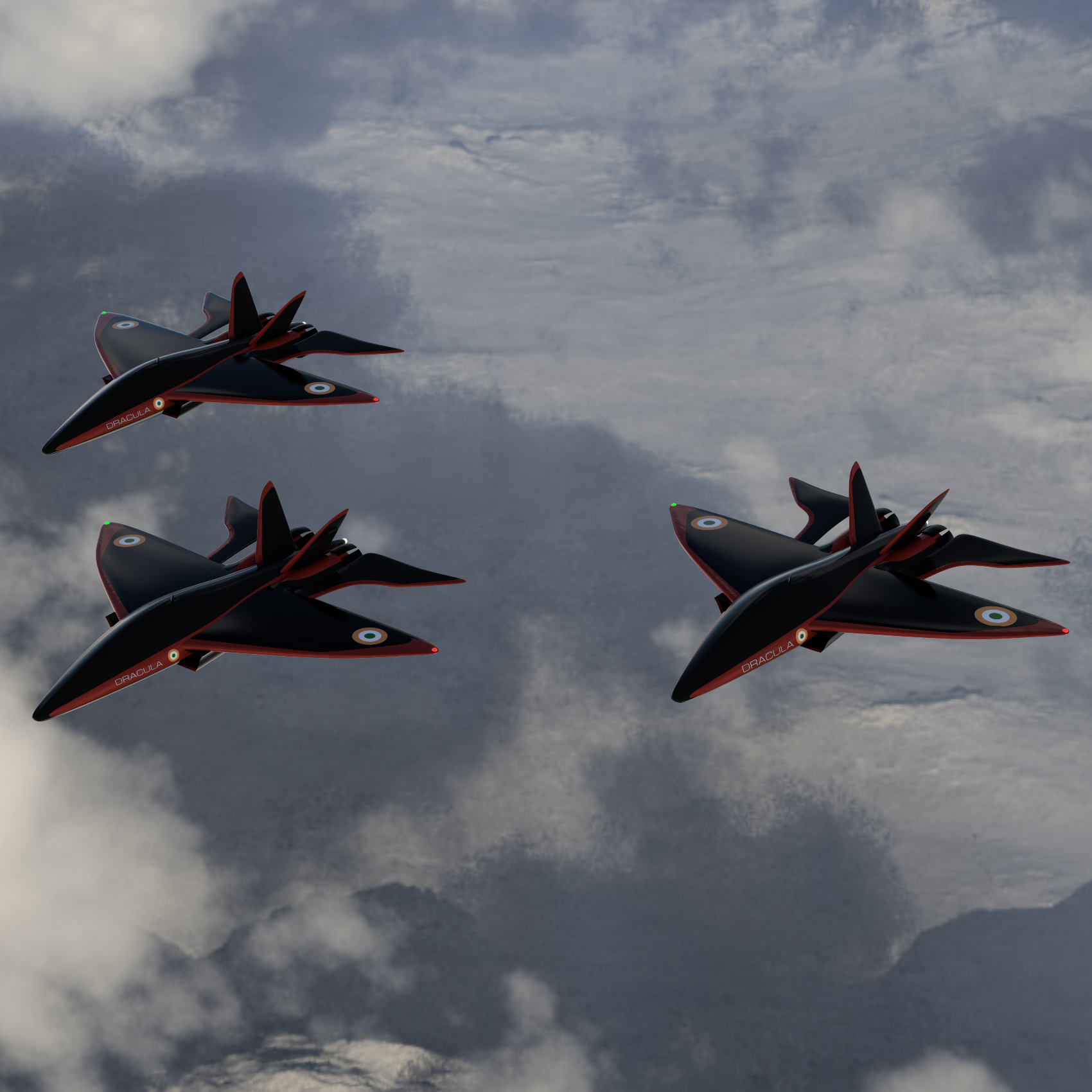

Three Dracula airframes in formation
Three-ship: uncrewed airframes are cheap to fly in numbers, and the programme was always drawn as a flight rather than a single aircraft.
Next aircraft
Sly Fox →
Krithick Ravi
Open to mechanical design and product development roles in Bayern.
Krithick Ravi ← Mechanical Engineering

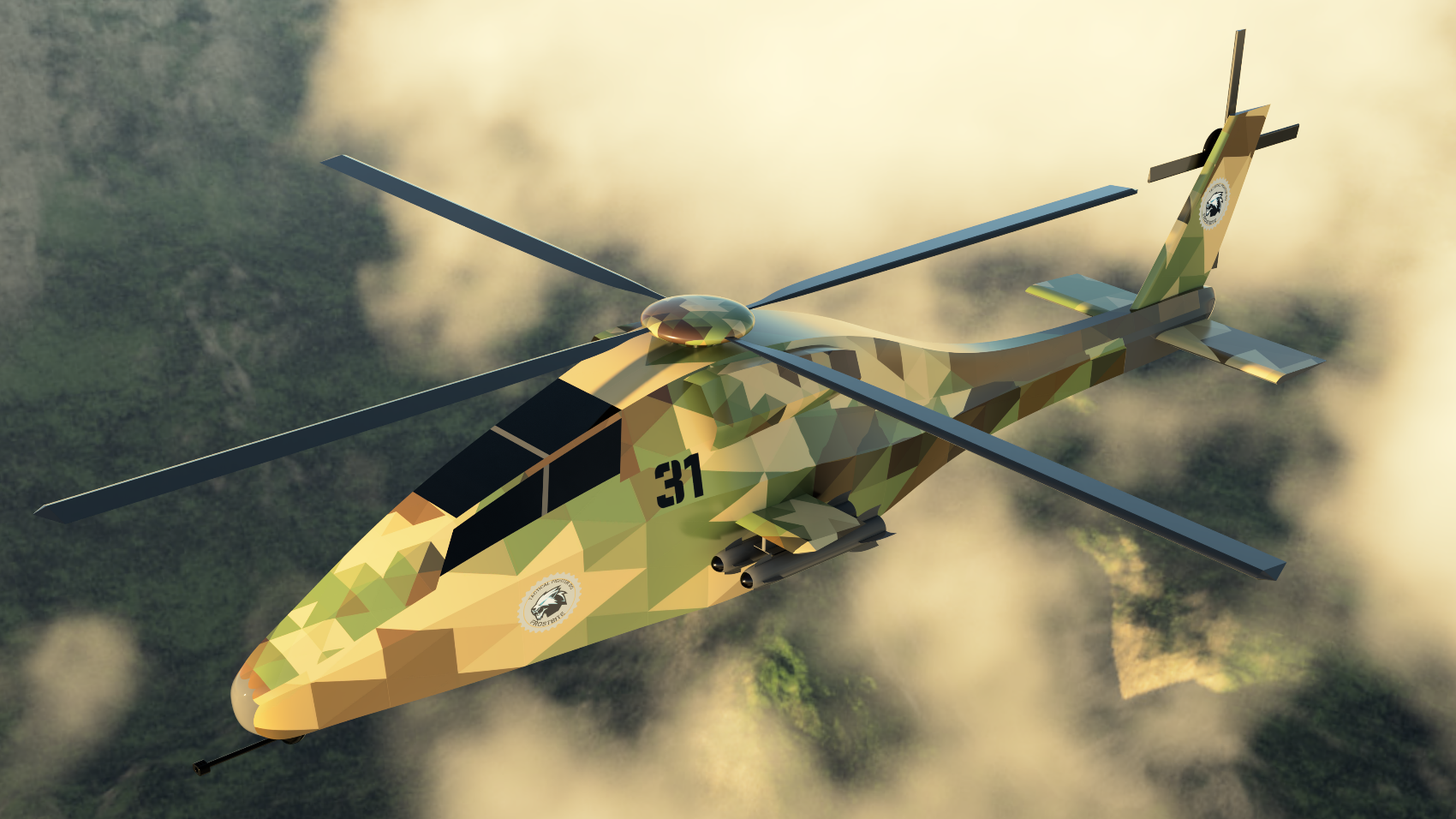

Sly Fox helicopter over forest
Personal concept · Future Attack & Reconnaissance Helicopter

Sly Fox

A low-observable rotorcraft whose job is to deliver precision munitions at low altitude and high speed — then leave. Armament is a co-pilot-operated 30 mm autocannon and four concealed missile pylons.

Role
Concept, CAD and rendering — all of it
Crew
Two, tandem — pilot and gunner
Armament
30 mm autocannon · 4 concealed pylons
Tools
Fusion 360 · SolidWorks · KeyShot
A helicopter that behaves like an aircraft

Attack helicopters are usually drawn as gun platforms with a rotor bolted on: slab sides, external stores, every surface a return. This one starts from the fuselage instead — a single continuous body with the tail boom flowing out of the spine rather than being attached to it.

The weapons live inside that body. Pylons sit flush until they are needed, the cannon is chin-mounted and slaved to the gunner in the front seat, and the stub wings do lift work rather than acting as a rack. Speed and a small return come from the same decision.

Where the shape comes from
Faceted body — flat planes angled away from the ground observer, no vertical slabs.
Concealed pylons: clean skin in transit, four hardpoints when it matters.
Tail boom sweeps up into a T-tail with a shrouded rotor mast — cleaner in the wake, quieter from the side.
Low-poly digital camouflage: the faceting is structural and the paint scheme was drawn to agree with it.

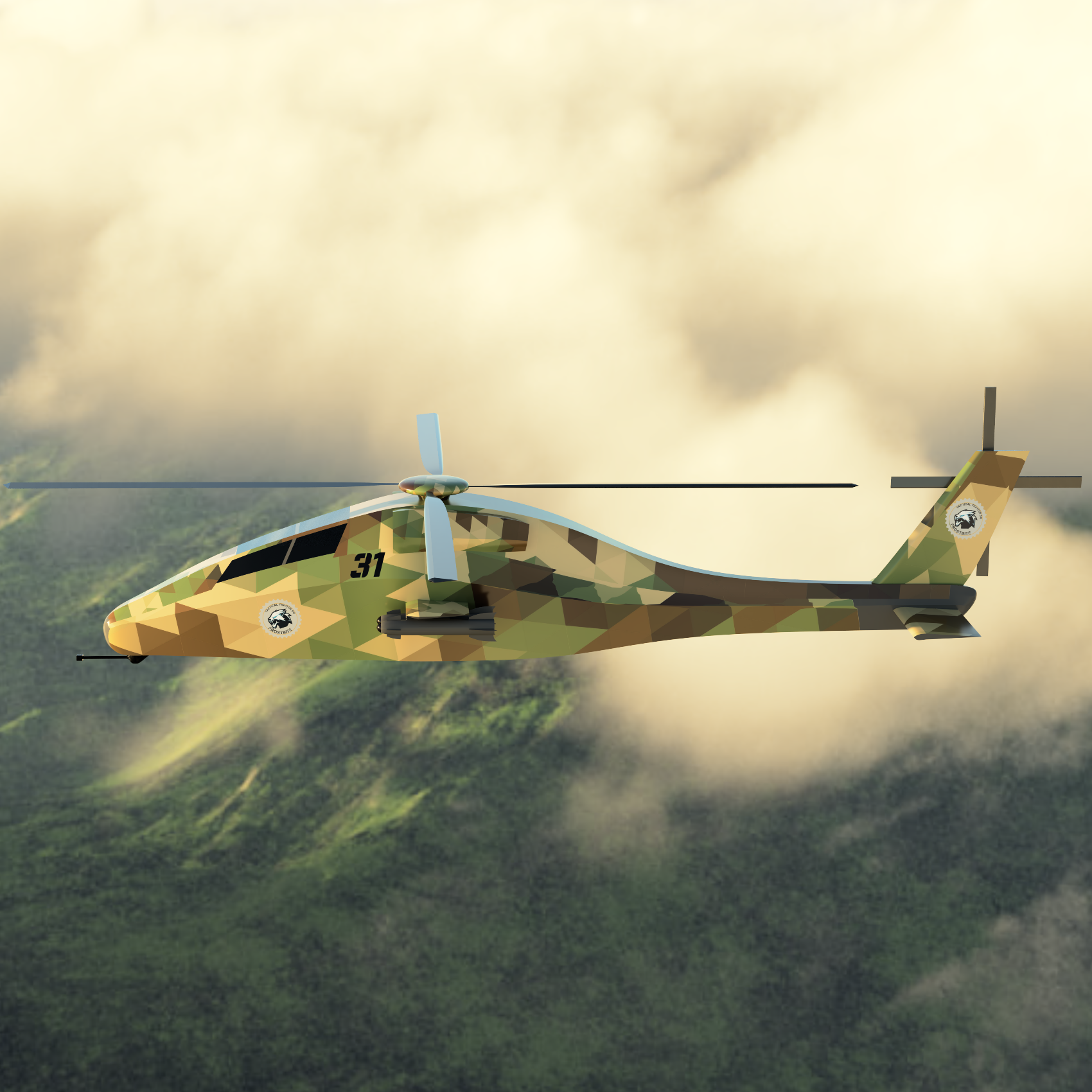

Sly Fox side profile

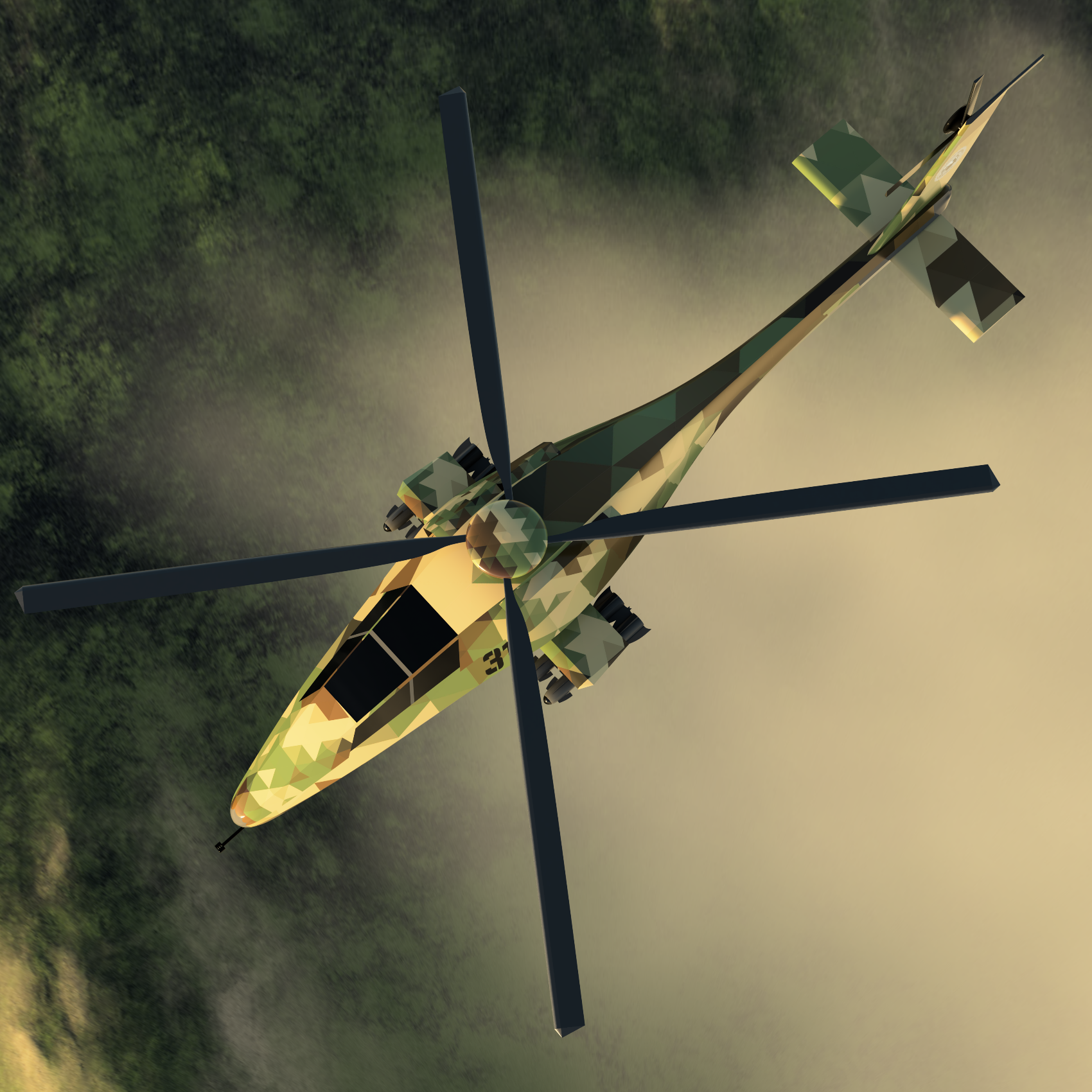

Sly Fox from directly above
Side profile and planform. The boom is the same surface as the cabin roof, pulled back and tapered — one body, not two parts joined.
Next aircraft
F/A-18 Legacy Hornet →
Krithick Ravi
Open to mechanical design and product development roles in Bayern.
Krithick Ravi ← Mechanical Engineering

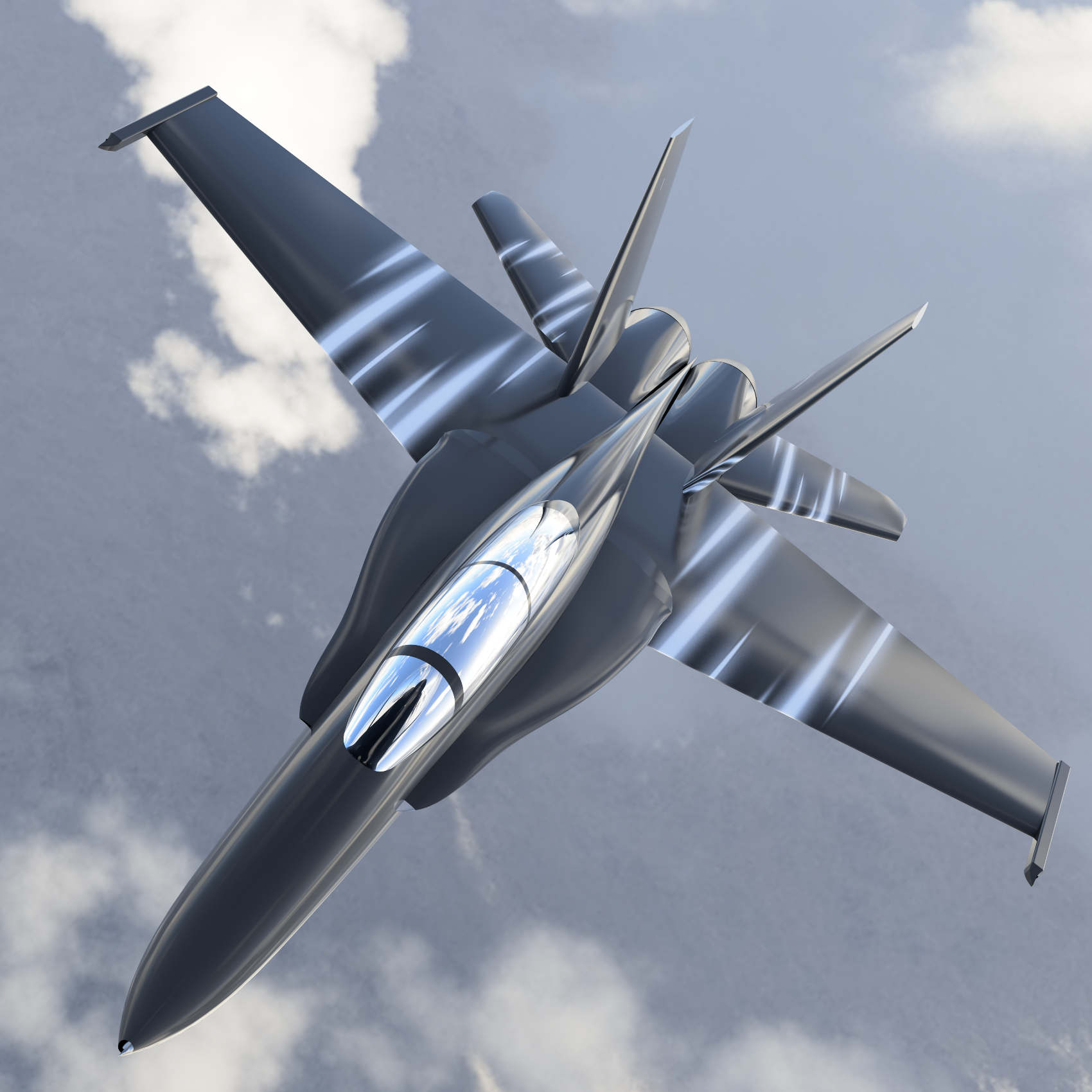

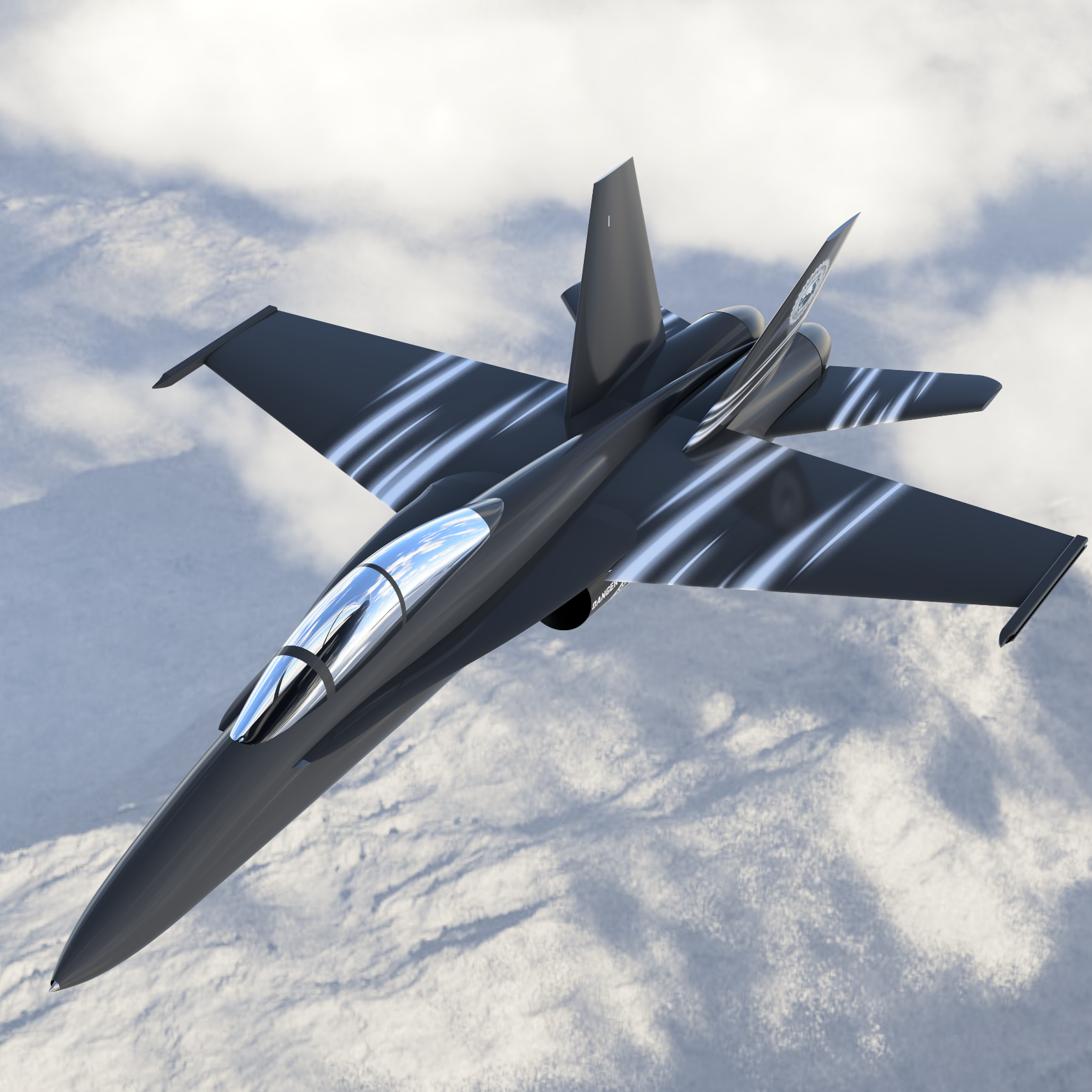

F/A-18 Legacy Hornet model in bare surface finish
Personal study · Not my design

F/A-18 Legacy Hornet

Somebody else's aircraft, rebuilt from reference surface by surface. No livery, no markings, no camouflage — the point was never the picture. It was whether I could make the surfaces meet cleanly enough to survive a mirror.

What it is
A surfacing study of an existing aircraft
Why
Compound curvature, blends and continuity
Tools
Fusion 360 · SolidWorks · KeyShot
Finish
Deliberately unpainted
The mirror is the test

Paint hides everything. A camouflage scheme will happily cover a surface that kinks at a blend or a fillet that changes radius halfway along, and you will never know. So this one stayed bare and got rendered on a near-mirror finish instead.

The stripes running down the wing and along the spine are the reflected horizon. Where they stay straight and evenly spaced the surface is continuous; where they would kink or bunch, the model is wrong. It is a zebra-stripe check done in the renderer rather than in the CAD viewport — the most honest way I know to publish a surfacing exercise.

The hard parts
The leading-edge root extensions, where the wing blends into the forward fuselage across a double curve.
Twin canted fins meeting the upper deck without a visible seam.
Intake trunks and splitter plates — flat sides that still have to fair into a round body.
The canopy, which is where every reflection error shows first.
Hornet study from above, reflections running along the wing
Top view: the reflected horizon runs the full span without breaking. That is the whole result.
Back to the start
LS-01 Dark Wolf →
Krithick Ravi
Open to mechanical design and product development roles in Bayern.
Krithick Ravi ← Mechanical Engineering
QPW500 endoskeleton isometric render
Rohde & Schwarz × THI · Interdisciplinary Project · SoSe 25

The Endoskeleton

A new internal structure for the QPW500 walk-through security scanner: one spine carrying the front-end boards, the compute, and the load — sized so a crew can take it apart, crate it, and stand it back up.

Under NDA

Specific detail on the QPW500 platform — RF specifications, board layouts, dimensions and internal documentation — is covered by a non-disclosure agreement with Rohde & Schwarz and is not published here. What is shown is my own structural design work and the capability it demonstrates: geometry is generalised and no proprietary electronics data appears. I'm happy to walk through the full detail in an interview under NDA.

My role
Technical Designer — the endoskeleton: spine, plates, board mounts, server drawer
Team
Seven, interdisciplinary — research, UX, development, industrial design, comms, PM
Tools
Fusion 360 · sheet metal & frame · DFA review
Delivered
May 2025 — final presentation to the client team
Where it started

The team studied the scanner from both sides of the glass: attendees who slow down because nothing tells them what to do, and operators watching a queue build while they wait on results. Alongside those experience problems sat two blunt physical ones — the machine is difficult to install and difficult to move.

What I took on

The installation and transport half. If the structure inside the housing were modular rather than monolithic, everything downstream gets easier: a service tech reaches one board instead of stripping a wall, a crew crates the machine instead of freighting it whole, and the scan geometry still holds when it is stood back up.

Why a new endoskeleton — seven requirements
Modular architecture
Every subassembly mounts and demounts on its own, so one damaged part is not a damaged scanner.
Easy maintenance
Boards face out at the front, everything else lives on the back of the column. Nothing needs a full teardown.
Better logistics
Packs into crates and flat stacks instead of shipping as one oversized crated object.
Server integration
Compute moves inside the frame instead of standing beside it as a separate tower and cable run.
Calibration & stability
The frame is what holds board geometry where the scan expects it — through shipping and through re-install.
Structural rigidity
Load paths run through the spine and the head and base plates, never through the housing panels.
Crowd protection
It stands up to being leaned on, knocked, and pushed past all day in an airport queue.
Anatomy

Five parts, five separate jobs.

Exploded arrangement of the endoskeleton assembly
Fusion 360 · full assembly, housing hidden
01
Head plate
Ties the column tops together and takes the top of the housing.
02
Columns — the spine
Vertical members that carry the front-end boards and hold the array geometry.
03
FE board mounts
Standoff plates that locate each board and let it come off on its own.
04
Base plate
The datum. Everything above it is referenced from here, and the load goes into it.
05
Server drawer
Compute in the base, on slides, pulled forward for service.
Board mounts

Boards in front, everything else behind.

Each front-end board sits on standoffs behind its own mount plate, so it is located by the plate rather than by the housing. The cut-outs in the plate clear the connectors and leave a service hand a way in without pulling neighbouring boards.

The rest of the electronics goes on the back face of the column. Front side is the array; back side is the plumbing. That split is what makes a maintenance visit a one-panel job.

Front-end board mount plate with PCB standoffs
FE board mount · PCB standoffs
Server drawer

The tower next to the machine became the floor of the machine.

Four GPUs, a main board and their cooling live in a drawer in the base plate. Air comes in the front through three fans and leaves through the vented flank; the interface plate puts every connector on one edge, so the machine has one face to plug into and one drawer to pull.

Server drawer interior with four GPUs, main board and fans
Drawer interior · 4× GPU, main board, intake bank
Server drawer front face with fans, interface and power button
Front face · intake, interface, vent
Compute
4× RTX 4090
Board
Main circuit board, drawer-mounted
Cooling
Dedicated front-to-flank path
Access
Telescopic rails, front pull
Logistics

A scanner that travels as parts, not as freight.

01
Head, columns and base plate come apart at their joints.
02
Each column splits down further into a carryable spine.
03
Spines travel loaded, in crates with cushions cut to their profile.
04
Housing panels stack flat instead of shipping as volume.
05
Reassembly runs bottom-up and lands back on the base plate datum.
Outcome

Presented to the Rohde & Schwarz team in May 2025 as part of the project's final review, alongside the UX and post-control work from the rest of the team. The endoskeleton carried the transport and maintenance argument: a machine that can be crated, carried, re-erected and serviced without the housing doing structural work.

What I'd do next

FEA on the column joints under the crowd-protection case, a fastener count reduction pass on the head plate, and a tolerance stack from base datum to the top board mount to prove the calibration claim rather than argue it.

In collaboration with
Industry project run with Rohde & Schwarz GmbH & Co. KG, Technische Hochschule Ingolstadt, summer semester 2025.
Krithick Ravi
Open to mechanical design and product development roles in Bayern.
Krithick Ravi ← Industrial Design
THI 2024 · Design Creation 1

SubSky GP

A racing series for a vehicle that competes in two fluids. The aircraft launch off water, fly a canyon course, then transform at the halfway mark and finish the race submerged.

My role
Whole concept — format, vehicle, liveries, board
Course
Design Creation 1 · Technische Hochschule Ingolstadt
Iteration shown
Mark 3 airframe, two team liveries
Tools
CAD surfacing · rendering · presentation board
The format

One race, two fluids, one transform point.

Designing the vehicle meant designing the sport first. The aircraft take off from the water surface and fly an aerial course that rewards agility over top speed; at the halfway marker they switch propulsion and wing geometry for submerged travel, then run a set of underwater checkpoints past seabed obstacles to the finish. The canyon leg is a straight nod to Top Gun.

01
Start — launch from the water surface
02
Canyon run — the agility leg
03
Transform point — air mode to water mode
04
Checkpoint run — submerged, past seabed obstacles
05
Finish line
The airframe

A delta because both fluids want the same thing.

The body is a single tapered volume with a low-drag nose and no separate fuselage-to-wing joint — the same section that cuts air cleanly is the one that has to cut water. A thin swept delta gives the wing area to fly the canyon leg and folds into a small frontal profile for the submerged run; the single fin keeps yaw authority in both.

The canopy is a long closed bubble, blended flush, because on this vehicle any step in the surface is a cavitation problem as well as a drag one.

SubSky GP seen from above, showing the swept delta plan
Propulsion

One hybrid engine, two modes.

The proposal is a hybrid jet that transitions from air-breathing to water propulsion on the same shaft, running on hydrogen fuel cells — so the transform point is a change of intake path rather than a change of vehicle.

Fuel
Hydrogen
Max airspeed
Mach 3
Max thrust
190 kN
Max speed, submerged
80 knots
Propulsive force, water
130 kN
All technical values are theoretical — set to make the format coherent, not derived from analysis.
Two teams

Same airframe, opposite personalities.

Car number 10 in the blue and white circuit livery
No. 10 — circuit blue
A technical livery: stepped bars and pixel checks that run with the airflow, densest where the wing is thickest. Reads as telemetry.
Car number 42 in black with red dragon linework
No. 42 — dragon black
The rival: gloss black, red leading edges, and hand-drawn dragon linework. Same geometry, read as a threat rather than an instrument.
SubSky GP aircraft over mountains at sunset
Presentation board

The whole proposal on one sheet.

SubSky GP presentation board with race format, map, technology and renders

The board carries the race map, the phase sequence, the propulsion diagram and the two liveries — the deliverable was a sport someone could be sold on, not just a vehicle.

What it argues

That a vehicle concept is only as good as the world it races in. The constraint that made the design interesting — one body, two fluids — came from writing the format first.

What I'd do next

Design the transform sequence properly — what physically moves, in what order, and how the intake seals. Right now it's asserted on the board and not resolved in the CAD.

In collaboration with
Coursework for Design Creation 1 at Technische Hochschule Ingolstadt, 2024.
Next project
Project Zeke →
Krithick Ravi
Open to product design and development roles in Bayern.
Krithick Ravi ← Industrial Design
Personal concept · Reveal livery

Project Zeke

A hybrid endurance racing hypercar, designed and surfaced from scratch — revealed in a tricolour livery built for the reveal itself.

My role
Everything — form, surfacing, livery, rendering
Type
Self-directed concept, no brief
Class
Hybrid endurance prototype
Tools
Autodesk CAD surfacing · rendering
The idea

Two closed volumes, joined by as little as possible.

Endurance prototypes are shaped by what the rules leave alone. Zeke takes that to its conclusion: the wheels sit inside two enormous enclosed pods, the cockpit is a narrow spine dropped between them, and the whole middle of the car is a tunnel rather than a body. There is no grille, no lamp cluster, no visible intake — the front is a single blade.

Fully enclosed wheel pods — the widest points of the car are its wheels, not its doors.
A single-piece canopy running the length of the spine, with no break line at the A-pillar.
Lighting reduced to one swept graphic per side, cut into the surface rather than applied to it.
A rear wing carried on the pods, so the tail stays open all the way through.
Plan view

The proportion only makes sense from above.

Project Zeke seen from directly above, showing the enclosed wheel pods and central spine

Seen flat, the car reads as four covered wheels and a blade. The tricolour brushstroke was drawn to work in this view first — it crosses the door and rear pod at the same angle the surfaces break, so the livery describes the shape instead of decorating it.

The livery

White body, a hand-drawn saffron-and-green stroke, and a race number where a sponsor would sit. It was made for the reveal render rather than for a season — the point was a car that looks like it belongs to somewhere.

What I'd do next

Resolve the cockpit ingress — right now the canopy is one surface with no answer for how a driver gets in — and take the underbody from a shape to a plausible floor.

Next project
Stone 1200F →
Krithick Ravi
Open to product design and development roles in Bayern.
Krithick Ravi ← Industrial Design
boAt Stone 1200F redesign in a space print with orange end rings
boAt Stone 1200F · Redesign · Challenge entry

Stone 1200F

A portable speaker re-aimed at the one audience it was never styled for: kids. Same barrel, same controls — a completely different object in a child's room.

My role
Concept, CMF, CAD and rendering
Challenge
#dowhatfloatsyourboat — Yanko Design × boAt
Brief
Redesign an existing boAt product
Tools
Fusion 360 · KeyShot
The opening

Everyone redesigns these for adults.

A rugged Bluetooth barrel is already a good product for a child: it rolls, it survives being dropped, it has no screen and no account. What stops it being a kid's speaker is entirely surface — black fabric, grey rubber, a logo in chrome. So I left the architecture alone and rewrote the skin.

Kept from the original
The barrel proportion and fabric wrap — the part that makes it tough.
The mid-body control band, in the same place a hand already looks for it.
The passive radiator faces at both ends.
CMF

A print that survives being looked at every day.

Close detail of the woven space print and the illuminated driver ring
Print on weave, not on plastic
Planets and rockets sit in the fabric itself, so the pattern reads at arm's length and breaks up into texture up close. Nothing is a decal that can be peeled off.
Three-quarter view of the redesigned speaker showing orange rings and carry loops
Orange as the handling colour
Every part a child touches is orange: the end rings, the control band, the two carry loops. The fabric stays dark so grubby hands don't show.
Both ends of the speaker with the blue backlit controls
Controls that glow, in the dark
Buttons are backlit blue and sized for a small finger; the ring light around the driver is the volume and pairing feedback, readable from a bed across the room.
What it argues

That a new audience doesn't always need new engineering. The change here is entirely CMF and graphics on an existing platform — the cheapest kind of product decision, and the one most often skipped.

What I'd do next

Put it in front of actual children — print sizing and glow brightness are the two things I'd expect to get wrong — and check the loops against a real strap and a real neck.

In collaboration with
Entry to the #dowhatfloatsyourboat design challenge, hosted by Yanko Design with boAt and KeyShot. An independent concept, not a boAt product.
Next project
Buddy Bookshelf →
Krithick Ravi
Open to product design and development roles in Bayern.
Krithick Ravi ← Industrial Design
Render Weekly · S6:W2 · #rwbookshelf

Buddy Bookshelf

A variable shelf that holds books by sliding, not by stacking — with a figurine doing the holding, so the mechanism reads as a character instead of hardware.

My role
Concept, CAD, figurine, rendering
Context
Render Weekly contest submission
Materials shown
Hardwood body, moulded figurine
Timeline
One week, 2021
The move

A bookend that travels with the collection.

A small shelf holds three books one week and nine the next, and every fix for that is ugly: a loose bookend that falls over, or a fixed divider that wastes the rest of the board. Here the end panel runs in a channel cut into the base — push it up against the spines and the books are clamped; slide it back and the shelf is open again.

The figurine is the handle. It leans into the panel with its whole body, which is both how you grip it and why the object is worth having on a desk: the mechanism is the story.

Decisions
Slider in the base, not a rail above — nothing crosses the book spines.
One moving part, no fasteners on show, no hardware finish to age badly.
The figurine modelled myself rather than dropped in, so its lean matches the push direction.
Matte black against warm wood — the buddy reads as a silhouette at any distance.
Two views
Side elevation of the bookshelf showing the channel and the leaning figurine
Elevation: the panel's travel is the whole length of the board, and the buddy's stance sets the push angle.
Top-down view of the bookshelf on a wooden surface
From above: two channels in the base, and the spare depth behind the panel that lets the shelf grow.
What it argues

That adjustability doesn't have to look technical. One channel and one character do the job that catalogues solve with brackets.

What I'd do next

Build it in wood. The open question is friction — the panel needs to hold a row of books without being stiff enough that a child gives up, and that's a test, not a render.

Next project
SubSky GP →
Krithick Ravi
Open to product design and development roles in Bayern.
Krithick Ravi ← {{ npIndexName }}
{{ npKicker }}

{{ npTitle }}

{{ npSummary }}

Role
{{ npRole }}
Timeline
{{ npTimeline }}
Tools
{{ npTools }}
{{ npB1Title }}

{{ npB1Body }}

{{ npB2Title }}

{{ npB2Body }}

{{ npB3Title }}

{{ npB3Body }}

In collaboration with
{{ npCompanyNote }}
Krithick Ravi
Open to product design and development roles in Bayern.
Krithick Ravi ← Mechanical Engineering
Test rig drive train — 25 kW motor, V-belt and shaft on the frame
HAL Rotary Wing R&D Centre × MVJ College of Engineering · 2022
Tail Gearbox Test Rig

HAL announced the RUAV-200, a rotary unmanned aerial vehicle for the Indian armed forces. Its tail gearbox is a part you cannot afford to learn about in flight — so it gets tested on a bench first. This was the bench.

Client
Hindustan Aeronautics Limited — Rotary Wing R&D Centre
Role
Design and CAD, four-person team (Batch B32)
Specimen
Tail rotor gearbox — bevel gear set, 3:1, 90° drive
Drive
25 kW AC motor · 1500 rpm · 159 Nm
The specimen, schematically

One bevel pair doing three jobs.

Where the tail gearbox sits in the drive line, and what happens inside it once the shaft arrives.

TAIL DRIVE SHAFT · HANGER BEARINGS MAIN GEARBOX TAIL GEARBOX TAIL ROTOR Rotary rudder — tail rotor Input — from the tail drive shaft Pitch change — flight control system Output turned 90°, driving the rudder Bevel pair — roughly 3:1 reduction Air-cooled housing, no pump or radiator Splash-lubricated sump
Schematic — not to scale. Gear geometry shown indicatively.
Under NDA

Specific detail on the RUAV-200 tail gearbox — gear data, tolerances, load cases and the test parameters agreed with the Rotary Wing R&D Centre — is covered by a non-disclosure agreement with Hindustan Aeronautics Limited and is not published here. What is shown is my own rig design work and the capability it demonstrates: the specimen is represented generically and no proprietary gearbox data appears. I'm happy to walk through the full detail in an interview under NDA.

What the part does

The tail gearbox sits at the top of the tail pylon and drives the rotary rudder. It does three jobs at once: cuts shaft speed by roughly 3:1, turns the drive through 90°, and passes pitch changes from the flight control system out to the tail rotor blades. It is splash-lubricated and air-cooled — no pump, no radiator, nothing to add weight at the far end of the tail.

That combination is why it earns its own rig. A gearbox changing both speed and direction under a live control input has more ways to fail than a bench can guess at, so the rig had to reproduce the real load path rather than simply spin the input shaft.

Why a rig at all

Airworthiness is a measure of how fit an aircraft is to fly, and every rotorcraft component is rated for a set number of flight hours and cycles. An unchecked mechanical fault does not stay mechanical for long — it becomes a reliability problem and then a safety one.

So the crucial components are run on the ground before they are installed. The brief was to design that ground apparatus: validate the quality of the tail rotor gearbox, learn what its maintenance actually demands, and design and analyse a functional rig for the specimen.

How the design was arrived at
01
Study how the tail rotor gearbox operates
02
List the parameters that have to be tested
03
Draw the possible layouts, then pick one
04
Detail the chosen design, component by component
05
Analyse and optimise the loaded parts
06
Run the calculations and report the results
The drive train

Six parts between the wall socket and the specimen.

Each one exists to make the test survivable: step the speed up, hold the shaft steady, absorb what vibrates, and break before the gearbox does.

25 kW AC motor
25 kW AC motor
1500 rpm, 159 Nm, 33.5 hp. The input to everything downstream.
V-belt drive on the rig structure
V-belt drive, 1:6
A stepped-up ratio takes motor speed to the range the gearbox sees in flight.
Plumber block bearing housing
Plumber block
Standardised blocks and bearings carry the rotational inertia and the dead weight of the belt drive and shaft.
Flexible coupling in the drive line
Flexible coupling
Damps vibration across the joint and keeps power transmission consistent under a varying load.
Mechanical fuse between coupling and specimen
Mechanical fuse
A deliberate weak point. It shears on torque overload so the overload never reaches the gearbox.
Test specimen — tail rotor gearbox mounted on the rig
Test specimen
The tail rotor gearbox itself, bolted to the table through a sandwich-type shock damper.
Final assembly

Everything on one welded table.

Motor and driver pulley up top, driven pulley and bearings on the cross member, then the fuse, the coupling and the specimen in a straight line. Sandwich-type dampers under all four feet.

Annotated layout of the tail gearbox functional test rig
What is not here

The FEM optimisation of the loaded components and the final load calculations were the next stage of the plan of action, alongside the submission to RWRDC. Those results are not shown on this page due to the company's NDA.

What I would change

The mechanical fuse is the part I would take further. It protects the specimen, which is the expensive thing in the room — but a shear pin sized for one torque ceiling makes the rig single-purpose. A replaceable, calibrated fuse cartridge would let one rig cover a family of gearboxes.

In collaboration with
Hindustan Aeronautics Limited
MVJ College of Engineering
Final-year project for the Department of Mechanical Engineering, MVJ College of Engineering, carried out with the Rotary Wing R&D Centre at Hindustan Aeronautics Limited. Internal guide Prof. Sandeep S; external guide Kolur Kaleel Ahmad, Senior Design Manager, RWRDC. Team: Keerthi Kumar J, Krithick R, Lakshmikanth K T, Manoj V.
Krithick Ravi ← Mechanical Engineering
Car 46 leading a pack of Baja buggies through dust at FMAE Moto Park
FMAE BAJA Season 3 · Team Velociraptors · 2020
Baja ATV — Car 46

An all-terrain vehicle built from nothing by a student team, then driven for five days over rock, sand and a water crossing. I was lead designer. Sixth overall out of fifty teams, eighth in design and analysis.

Role
Lead Designer
Team
Team Velociraptors, Bengaluru
Span
Feb 2019 – Nov 2020 · 1 yr 10 mos
Event
21–25 Feb 2020 · FMAE Moto Park, Hyderabad
6th
Overall, out of fifty teams
8th
Design & analysis
5
Days of scrutineering, dynamics and endurance
46
The number that went on the nose
What the competition asks

FMAE Baja is run by the Fraternity of Mechanical and Automotive Engineers, and Season 3 finished at their Moto Park outside Hyderabad in February 2020. The scoring is split: you are judged on the engineering design and analysis you can defend in front of a panel, and then on whether the thing you built survives days of rough terrain.

Those two halves pull against each other constantly. Every gram you take out of the vehicle to make it quicker is a gram of material you have to argue for on paper — and then trust when the car lands off a jump with a driver inside it.

What leading design meant

Being lead designer on a student team is less about drawing and more about arbitration. The roll cage, the suspension pick-up points, the driver's space and the fire-extinguisher mount all want the same volume, and every subsystem lead is certain theirs should win. My job was deciding, in order, and keeping the decisions consistent enough that the fabricators could keep cutting tube.

It is the most honest design education I have had. Nothing hides. If a bracket is wrong you find out in front of twenty people with a grinder in their hands.

On the course

Everything you designed, being disagreed with.

Water crossing, loose sand, and a trail narrow enough that the front wheels do the steering whether you ask them to or not.

Car 46 dropping into the water crossing
Car 46 head-on through the scrub
The team
Team Velociraptors with Car 46 at FMAE Moto Park

Twenty-odd people, one vehicle, and a deadline that does not move. Worth putting on the page because none of the above was done alone.

In collaboration with
MVJ College of Engineering
Built as Team Velociraptors of MVJ College of Engineering for FMAE BAJA Season 3, organised by the Fraternity of Mechanical and Automotive Engineers at FMAE Moto Park, Hyderabad.
Krithick Ravi
Industrial Design Mechanical Engineering Digital Tools
Domain 03

Digital Tools

Software I build so the hardware work goes faster. One project so far, and it is the large one: an environment that takes an invention from first thought to the point where it can be defended.

Desk-E
2025–26 · Built solo · Closed beta
Desk-E
A cockpit for inventors: five AI agents take an idea through foresight, evaluation, patentability, development and market.
Product design Interaction & build
Interactive screens

The product's own screens, rebuilt here to click through. Sample data throughout — nothing live.

Krithick Ravi ← Digital Tools
An inventor's suite · 2025–26
Desk-E — from idea to protected product

Desk-E

A cockpit for inventors. Five AI agents take one idea through foresight, evaluation, patentability, development and market — each returning a verdict that gates the next.

Role
Sole designer and developer
Context
MSc Engineering & Management, Design Leadership — TH Ingolstadt
Status
Closed beta · three of five agents built
Companion
Desk device on an ESP32-S3
Closed beta

The inventions Desk-E manages are real and private, so every screen on this site runs on illustrative sample data — an electric-aircraft-propulsion scenario authored for exactly this purpose. No real invention titles, scan domains or patent findings appear here, and nothing on these pages is live.

The pipeline

Five stages, each one a gate.

Every agent returns proceed, hold or stop. A hold is not a failure — it is the system declining to guess.

⟨01⟩ Built
FOR-E
Foresight
Is now the right moment?
⟨02⟩ Built
VAL-E
Evaluation
Is the idea worth pursuing?
⟨03⟩ Built
IP-E
Patentability
Can it be protected?
⟨04⟩ Designed
DEV-E
Development
What will it cost to build?
⟨05⟩ Designed
MARK-E
Market
Who buys it, and how?
Architecture

Agents never call each other.

All cross-agent data moves through one shared dossier — the Invention Record. Each agent reads it and appends to it, and that is the only channel.

It sounds like a small decision and it is the one that makes the thing survivable. A direct call between agents means a failure in one becomes a failure in all of them; a shared record means a broken agent produces a gap you can see rather than a cascade you cannot.

INVENTION RECORD one dossier per invention FOR-EVAL-EIP-EDEV-EMARK-E READS APPENDS no agent-to-agent channel
The design story

A consistent refusal to let the system fabricate.

The feature list is not the interesting part. These five decisions are.

AI drafts, the user supplies facts.

Tools split in two. In some the model proposes and the user edits — PESTEL, SWOT, pros and cons. In the rest the user supplies the numbers and the agent may only challenge them: cost–utility, the Pfeiffer portfolio, TRL, payback. An agent inventing your cost figures would be fabrication, not assistance.

A wrong model was rebuilt rather than kept.

CARAT was first implemented with axes I had invented. When the real Department of Energy framework surfaced, the whole tool was rebuilt around the published seventeen-dimension rubric and its scoring table. Keeping the plausible-looking version would have been cheaper and dishonest.

Overrides are visible, never silent.

You are allowed to disagree with a computed score — drag the bubble. But the override is badged with what the assessment actually computed, the bubble gets a marker, and one click restores it. Disagreement is a stated position, not a quiet edit.

Every contact traces to a source.

The radar hover popup exists partly as proof of provenance: headline, detection date, source, why it matters. A segment with nothing real to show stays empty rather than being filled with something plausible.

The demo admits it is a demo.

FOR-E ships with a disclaimer modal and a badge that does not go away, because continuous live monitoring is not running yet. A tool that overstates its own certainty is worse than one that does less.

An AI decision tool must make the provenance of every figure visible at the point of use.

By the numbers
5
Agents — three built, two designed
9
Evaluation tools across three gated phases
17
Adoption-risk dimensions, from the DOE framework
6
Scored dimensions in the patentability radar
5
Interchangeable themes, switchable in the demos
Screens

Click into the instrument.

Rebuilt to explore, not to work. Editing affordances are shown and do nothing.

⟨01⟩ FOR-E · Foresight
The foresight radar
Angle is category, distance is time to impact, colour is priority. The sweep runs, contacts light up, and hovering one shows where it came from.
⟨02⟩ VAL-E · Evaluation
Nine evaluation tools
Three gated phases, three carousels, a real chart and a visible calculation under each one.
⟨03⟩ IP-E · Patentability
Patentability report
A six-axis profile where the notch is the finding, and seven sections that name their evidence.
Krithick Ravi ← Desk-E
⟨01⟩ FOR-E · Foresight

Is now the right moment?

A radar, used as a radar. Angle is the category, distance is time to impact, colour is priority, and a contact's nose points where it is heading. Hover one to see where it came from.

Theme Horizon
DESK-E
REC 02 Electric propulsion in planes
Demo data {{ foreThemeLabel }}
Radar setup 06/08
Segments watched
{{ s.name }}
Seed keywords
electric propulsionaxial fluxspecific powerEASA SC19-seat
Sources
EPO / DPMAEASAtrade presspreprints
Priority
High — act immediately
Medium — plan for it
Low — keep watching
Nose toward the centre means closing — becoming more urgent. Outward means receding.
Foresight radar {{ foreHorizonLabel }}
Competitors
Patents & IP
Regulation
Market demand
Technology
Capital & funding
{{ foreR1 }} {{ foreR2 }} {{ foreR3 }}
{{ forePop.priority }} {{ forePop.segment }}
{{ forePop.headline }}
Time to impact {{ forePop.tti }}
Movement {{ forePop.move }}
Speed {{ forePop.speed }}
Detected {{ forePop.detected }}
Source {{ forePop.source }}
Why it matters
{{ forePop.why }}
Suggested action
{{ forePop.action }}
Segments — clockwise from top right
01 Competitors
02 Patents & IP
03 Regulation
04 Market demand
05 Technology
06 Capital & funding
Centre is now. The rim is the horizon. Hover a contact for provenance.
Live notifications newest
{{ n.kind }}
{{ n.text }}
{{ n.at }}
Radar status
State {{ foreState }}
Last swept {{ foreLast }}
Contacts {{ foreCount }}
High priority {{ foreHigh }}
Medium {{ foreMed }}
Low {{ foreLow }}
Next high scan 00:06:12
Next full scan 04:18:40
Pipeline gate
{{ foreGate }}
Before you read this radar

Continuous live monitoring is not running yet. Every contact on this face is authored sample data for one scenario — electric propulsion in planes — and no scan is being performed.

The real product ships this same modal, for the same reason.

Angle
Category. Six segments shown of eight available, so the face stays readable and an unwatched domain is visibly absent rather than quietly missing.
Distance
Time to impact. The centre is now, the rim is the horizon, and the horizon is switchable — three months, a year, five years.
Colour
Priority, not sentiment. Red means act immediately whether the contact is a threat or an opportunity — a closing market window reads as urgent as a rival.
Heading
The nose points along the contact's movement and the line behind it is speed. Toward the centre is closing; outward is receding and can be deprioritised.
Why a radar

A list cannot show you that something is closing.

Foresight output is usually a feed: twelve headlines, each with a severity tag. The problem is that a feed flattens the two things an inventor actually needs — how soon, and getting worse or better. Both are spatial, so the display should be spatial.

Borrowing the whole grammar of an aircraft radar — heading, velocity line, closing versus receding, an alarm ring for the thing that needs attention now — means the screen is legible at a glance to anyone who has seen one, and rewards a longer look without needing a legend.

What the hover is for

Provenance at the point of use.

Every contact carries its detection date, its source and a plain-language reason it is on the face at all. That is not a nicety — it is the condition of the tool being trustworthy. A mark on a radar is an assertion, and an assertion you cannot trace is a guess with better graphics.

The corollary is the rule that a segment with nothing real to show stays empty. An evenly-populated radar would look more finished and would be a lie about how much is known.

Krithick Ravi ← Desk-E
⟨02⟩ VAL-E · Evaluation

Is the idea worth pursuing?

Nine tools in three gated phases. Each column is its own carousel — step through the tools with the arrows or the dots. Every tool renders a real chart and shows the arithmetic underneath it.

Theme
DESK-E
REC 02 Electric propulsion in planes
Demo data
Phase 1 · Pre-screening Passed
Tool 01 of 03 · model drafts, you edit
PESTEL
i Edit
Politic 3
Economi 4
Social 2
Technol 5
Environ 4
Legal 3
Calculation trace
impact = analyst rating 1–5 per factor
mean = (3+4+2+5+4+3) / 6 = 3.50
threshold to advance = 3.00 → pass
Six macro factors rated for impact. The model proposes a first pass; every tile is yours to overwrite.
Tool 02 of 03 · model drafts, you edit
Strengths & weaknesses
i Edit
Specific power Cooling IP Supply chain Cert experience Team depth Capital runway -5 +5
Calculation trace
sum(+) = 4 + 3 + 2 = +9
sum(−) = −2 − 3 − 4 = −9
net = 0 → flagged for review, not rejected
A dead heat is the interesting result. VAL-E reports it rather than rounding it into a verdict.
Tool 03 of 03 · model drafts, you edit
SWOT
i Edit
Strengths
Specific power lead
Cooling geometry filed
Weaknesses
No cert track record
18-month runway
Opportunities
EASA SC comment window
19-seat operator RFI
Threats
Rival 400 kW motor
Broad stator-cooling claim
Calculation trace
items drafted: 8 · edited by user: 3
threats cross-referenced to FOR-E contacts: 2
Threats are pulled from live radar contacts, so the two views cannot drift apart.
Phase 2 · Pre-selection Passed
Tool 04 of 06 · model drafts, you edit
Arguments balance
i Edit
Regulatory tailwind ×3 First mover in class ×2 Fund window open ×1 Battery maturity ×2 Certification cost ×3 net +2
Calculation trace
score × weight, summed
(+4×3) + (+4×2) + (+3×1) = +23
(−3×2) + (−5×3) = −21
net = +2 → marginal proceed
Weights are the user\u2019s. A net of +2 out of a possible 60 is reported as marginal, not as a yes.
Tool 05 of 06 · you supply the numbers
Cost–utility
i Edit
KNEE COST → UTILITY →
Calculation trace
utility per unit cost, six configurations
knee at config 4: 132 utility / 158 cost
marginal gain beyond knee = 12 for +120 cost
The agent may challenge a figure here but never invent one. Cost data is the user\u2019s alone.
Tool 06 of 06 · you supply the numbers
Technology portfolio — Pfeiffer
i Edit
INVEST SELECTIVE DIVEST SELECTIVE MOT INV BMS TECHNOLOGY ATTRACTIVENESS →
Calculation trace
attractiveness × resource strength
motor: 0.78 × 0.72 → invest quadrant
BMS: 0.61 × 0.34 → selective
Bubble area is investment. Placement is computed from the two axis scores, not eyeballed.
Phase 3 · Detailed In review
Tool 07 of 09 · you supply the numbers
TRL ladder
i Edit
RESEARCH DEVELOPMENT DEPLOYMENT TRL 9 TRL 8 TRL 7 TRL 6 TRL 5CURRENT TRL 4 TRL 3 TRL 2 TRL 1
Calculation trace
evidence required per level, 1–9
level 5 evidence: complete
level 6 evidence: 2 of 5 items → not yet 6
A level is only claimed when its evidence list is complete. Partial evidence does not round up.
Tool 08 of 09 · DOE framework
CARAT — adoption vs readiness
i Edit
RESEARCH DEMONSTRATION DEVELOPMENT DEPLOYMENT TARGET MOT ! ADOPTION READINESS (ARL) 0–9 → TRL 0–9 →
Override Dragged to ARL 4. The assessment computed 3 — one click restores it.
Calculation trace
17 risk dimensions across 4 areas
value proposition 4/4 low → ARL contribution 3
market acceptance 2 high → capped at 3
computed ARL = 3 · override = 4
Rebuilt around the published Department of Energy rubric after the first version used axes I had invented.
Tool 09 of 09 · you supply the numbers
Payback
i Edit
BREAKEVEN MONTH 31 CUMULATIVE CASH FLOW →
Calculation trace
cumulative = ∑ (revenue − cost) per month
crosses zero between month 30 and 31
interpolated breakeven = month 30.7
The dashed marker is the interpolated crossing, not the first positive month — those differ and the difference matters.
The split that matters

Two kinds of tool, and the difference is not cosmetic.

In PESTEL, SWOT and the argument balance the model drafts and you edit — it is faster to correct a wrong first pass than to face an empty grid. Each of those tools says so in its own header.

In cost–utility, the Pfeiffer portfolio, TRL and payback, you supply the numbers and the agent may only challenge them. An agent inventing your cost figures is not assistance, it is fabrication with a progress bar.

Why the trace is always visible

A score with no arithmetic is an opinion.

Every tool prints the calculation under the chart — the inputs, the operation and the threshold. It costs three lines of space and it is the difference between a number you can argue with and a number you have to trust.

It also catches the near-misses. The strengths and weaknesses tool here nets to exactly zero, and the payback crossing falls between two months. Both get reported as what they are rather than rounded into a verdict.

Krithick Ravi ← Desk-E
⟨03⟩ IP-E · Patentability

Can it be protected?

Six scored dimensions, a headline verdict, and seven sections that say what the score is made of. The interesting part is what it refuses to round: a strong novelty score sitting next to a middling freedom-to-operate risk is not one number.

Theme
DESK-E
REC 02 Electric propulsion in planes
Demo data REPORT 04
Headline 31/08/2026
H02K · Electric machines B64D · Aircraft equipment
Novelty score
78 /100
Freedom to operate Medium–high risk
Plain-language brief

The cooling-channel geometry is very likely novel and the inventive step is defensible. What is not clear is whether you can practise it — one recently published claim reads onto the channel pitch as currently drafted.

File on the geometry, but get a claim chart against EP 4 1xx xxx before committing to the pitch. A design-around on pitch alone would preserve most of the novelty.

Dimension scores SCALE 25/50/75/100
25 50 75 100 NOVELTY78 INVENTIVE STEP71 FREEDOM TO OPERATE54 CLAIM STRENGTH66 MARKET BREADTH82 PRIOR-ART CLEARANCE61
Mean 68.7. The shape matters more than the mean — the notch at freedom to operate is the finding. 6 dimensions scored
Patentability Favourable
Novel over the closest cited art on channel pitch and manifold placement.
Inventive step supported by a measured 14% thermal gain the art does not predict.
Technical breakdown 4 features
Segmented stator with interleaved coolant channels.
Manifold integrated into the end-bell casting.
Pitch ratio outside the range taught by the art.
Prior art 7 documents
3 closely related, 4 peripheral.
Closest: a 2019 family teaching axial channels at constant pitch.
None discloses the variable pitch.
Freedom to operate Medium–high
One A1 publication with a broad independent claim, not yet granted.
Reads onto the current pitch range on a literal construction.
Opposition window opens in 2027.
White space 2 openings
Variable-pitch cooling in the 200–500 kW class is unoccupied.
A lapsed family leaves room in three jurisdictions.
Claim strategy Drafted
Independent claim on the pitch relationship, not the channel itself.
Two dependents covering the manifold, one on the assembly method.
Risk mitigation 3 actions
Claim chart against the A1 before the priority deadline.
Prepare a pitch design-around as a fallback.
Monitor the family for grant or refusal.
Why six axes and not one number

The shape is the finding.

Averaging these six dimensions gives 68.7, which sounds like a pass and tells you nothing. The useful reading is the notch: novelty and market breadth are strong, freedom to operate is not, and those two facts imply completely different next actions.

A polygon makes an uneven profile impossible to miss in a way a single score or a stack of bars does not. The mean is still printed, deliberately underneath, because someone will ask for it.

What IP-E will not do

It is not a legal opinion, and it says so.

Every section names its evidence: how many documents, which classification, whether a claim is granted or merely published. The freedom-to-operate section will not return "clear" — the best it offers is a risk band with the reason attached.

That restraint is the point. A tool that tells an inventor their idea is free to practise, on the strength of a search, is doing something worse than nothing.

Back to
Desk-E →
Krithick Ravi ← {{ cur.domain }} Email
{{ cur.kicker }}
{{ cur.title }}

{{ cur.summary }}

{{ cur.meta }}

{{ para.t }}

Views
